10MJ PLUG

Description & Features

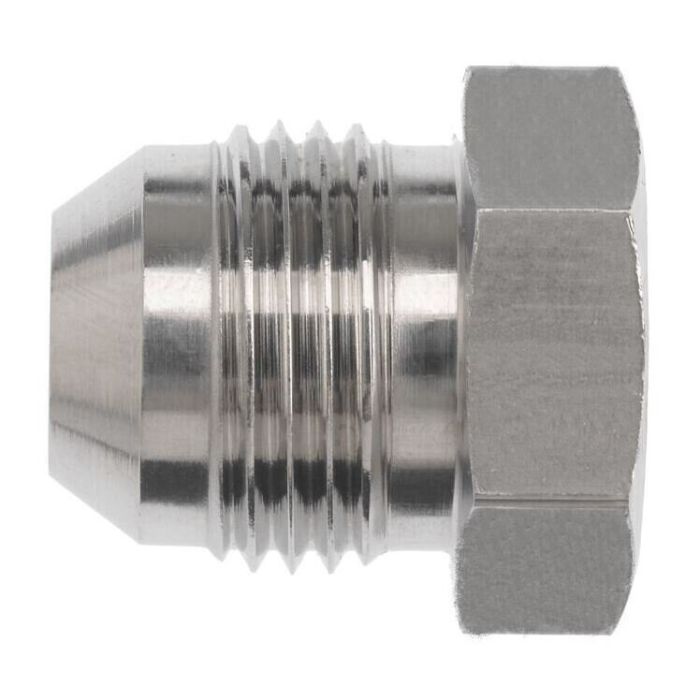

Designed for industrial applications, the 10MJ Plug by Brennan Industries Inc ensures reliable functionality with maximum dynamic pressure support up to 5,000 Psi. This plug features a durable construction made from straight steel, making it ideal for demanding environments.

Its overall length measures 1.100 mm with a secondary length of 0.310 mm. The 7/8-14 thread size, complying with SAE J514 standards, ensures compatibility with male JIC SAE 37-degree flare fittings.

The plugrsquo;s 0.484 mm drill thread offers precise threading capabilities, maintaining tight and secure connections. With a compact cubic inch space of 0.966, it is suited for installations where space efficiency is crucial.

Supplier Part Number: 2408-10

California Residents: PROP-65 WARNING

Specifications

Connection Type Male JIC	Cubic Inch Space L x W x H Dimensions 0.966 cu-in	Dimension Standards SAE J514	Dimensions 1.1 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	l2 Dimensions 0.31 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5000 psi	Series 2408 Series	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14

Product Questions & Answers (2)

Question by: Wes H on Sep 12, 2025, 11:20 AM

got a line with a 7/8-14 male JIC 37 degree flare port. is this the right plug for it

Answer by: Customer Support on Sep 14, 2025, 6:10 AM

For a 7/8-14 thread that uses a male JIC SAE 37 degree flare connection per SAE J514, this plug matches that thread type and size.

Question by: Earl S on Dec 8, 2025, 7:03 PM

Just want to make sure -- this plug will fit a standard JIC 37-degree flare fitting, right?

Answer by: Customer Support on Dec 10, 2025, 5:13 PM

Yes sir, this 10MJ plug is made to comply with SAE J514 standards, so it'll fit right into any male JIC SAE 37-degree flare fitting.
