12MJ PLUG STNLS

Description & Features

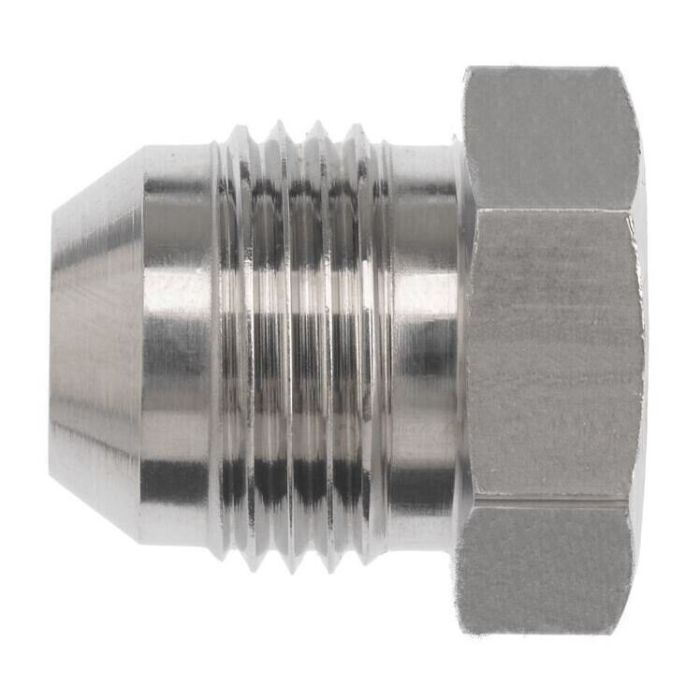

This straight stainless steel 12MJ PLUG STNLS is designed to meet SAE J514 standards. It features a male JIC SAE 37 degree flare thread type with a 1-1/16-12 thread size.

With a maximum dynamic pressure of 5,000 PSI and a cubic inch space of 1.62, this plug ensures reliable performance in demanding hydraulic applications.

SKU: 2408-12-SS

Supplier Part Number (MPN): 2408-12-SS

Alternate Part Numbers: AJ12P

Specifications

Connection Type Male JIC	Cubic Inch Space L x W x H Dimensions 1.62 cu-in	Dimension Standards SAE J514	Dimensions 1.28 in L	Fitting Type Plug	l2 Dimensions 0.38 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 6000 psi	Series 2408 Series	Thread B1 Drill Dimensions 0.609 in	Thread Size 1-1/16-12

Product Questions & Answers (1)

Question by: Phil P on Mar 2, 2026, 6:25 PM

So this plug, it's stainless steel, right? I need something that can handle some pressure. What's the max it can take?

Answer by: Customer Support on Mar 4, 2026, 10:02 AM

This straight stainless steel plug is rated for a maximum dynamic pressure of 5,000 PSI, so it should hold up well in demanding hydraulic applications.
