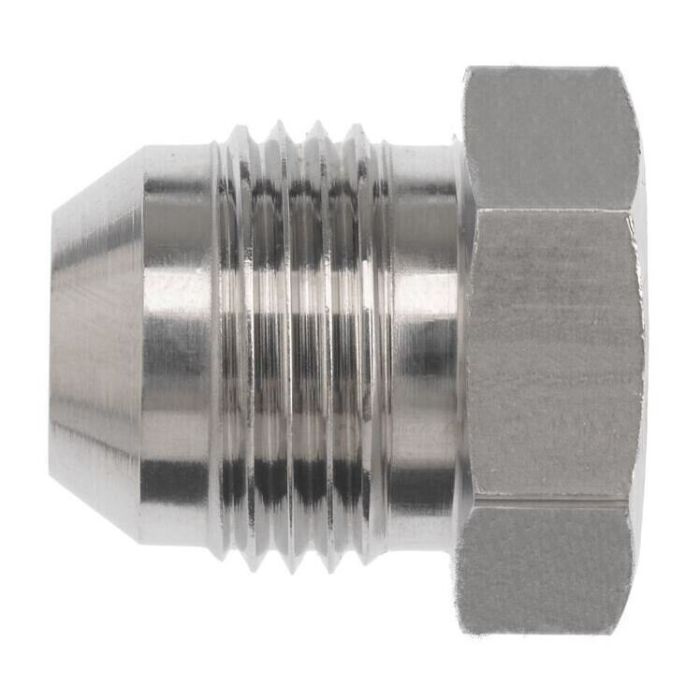

16MJ PLUG

Description & Features

The 16MJ Plug from Brennan Industries Inc is designed for demanding industrial applications. It features a thread size of 1-5/16-12 and conforms to the SAE J514 specification with a Male JIC SAE 37 Degree Flare. Constructed from straight steel it ensures durability and longevity under high pressure conditions.

With an overall length of 1.330 mm and a maximum dynamic pressure rating of 4 000 psi this plug suits various high-performance requirements. Its compact design measuring 2.515 cubic inches in space aids in efficient system configurations.

Compliance with California's PROP-65 warning ensures product safety standards. Moreover the plug's thread drill measures 0.844 mm facilitating precise fitting. As part of the 2408 series this component meets stringent industry requirements.

Supplier Part Number: 2408-16

Specifications

Connection Type Male JIC	Cubic Inch Space L x W x H Dimensions 2.515 cu-in	Dimension Standards SAE J514	Dimensions 1.33 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	l2 Dimensions 0.419 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 4500 psi	Series 2408 Series	Thread B1 Drill Dimensions 0.844 in	Thread Size 1-5/16-12

Product Questions & Answers (2)

Question by: Marvin W on Dec 17, 2025, 3:45 PM

got a fitting with a 1-5/16-12 male JIC 37 degree flare port. is this the right plug for that?

Answer by: Customer Support on Dec 19, 2025, 9:29 AM

For sealing off that style port, this plug matches a 1-5/16-12 Male JIC SAE 37 Degree Flare thread and it’s built to the SAE J514 spec, so it’s the correct fit for a 1-5/16-12 male JIC 37 degree flare connection.

Question by: Cheryl E on Jan 19, 2026, 5:44 PM

Will this plug hold up in a hydraulic system that runs pretty hot, pressure-wise I mean?

Answer by: Customer Support on Jan 21, 2026, 6:56 AM

Maximum dynamic pressure for this 16MJ plug is rated to 4,000 psi, so you should be good to go there.
