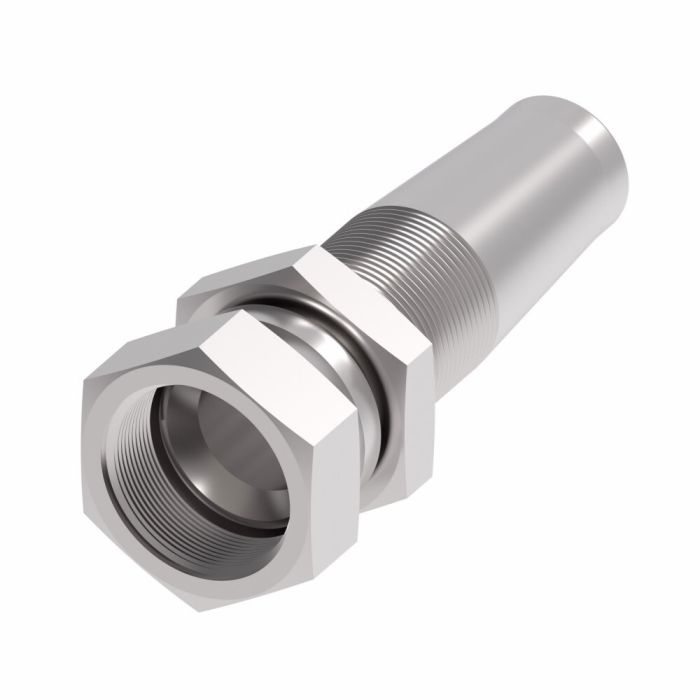

Aeroquip Reusable FTGS - Code

Description & Features

Aeroquip Reusable FTGS - Code fitting with female UNF and male UNEF end connections.

This carbon steel nipple assembly is fit for a wide range of applications, offering a durable and dependable connection. This Aeroquip fitting cuts assembly times and boosts production.

SKU: 2411-10S

Supplier Part Number (MPN): 2411-10S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.09 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 7/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.42 in	Dimension Standards SAE J514	Dimensions 3.09 in L x 1 in W x 1 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 7/8 in	End Size 2 11/16 in	Finish Dura-Kote™	Fitting Type Nipple	For Use With 1503 Series Hoses	Hex Size 1 x 1 in	Hose Dash Size 10	Inside Diameter 0.46 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Series 2411 Series	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
2411-4-5S	5/16 in	7/16 in	05
2411-4S	1/4 in	1/4 in	04
2411-5S	5/16 in	5/16 in	05
2411-6-8S	1/2 in	9/16 in	08
2411-6S	3/8 in	3/8 in	06
2411-8-6S	3/8 in	1/2 in	06
2411-8-10S	5/8 in	3/4 in	10
2411-8S	1/2 in	3/4 in	08
2411-10-8S	1/2 in	7/8 in	08
2411-10-12S	3/4 in	5/8 in	12
2411-12-10S	5/8 in	3/4 in	10
2411-12S	3/4 in	3/4 in	12
2411-16S	1 in	1 in	16
2411-20S	1-1/4 in	1-1/4 in	20
2411-24S	1-1/2 in	1-1/2 in	24
2411-32S	2 in	2 in	32
