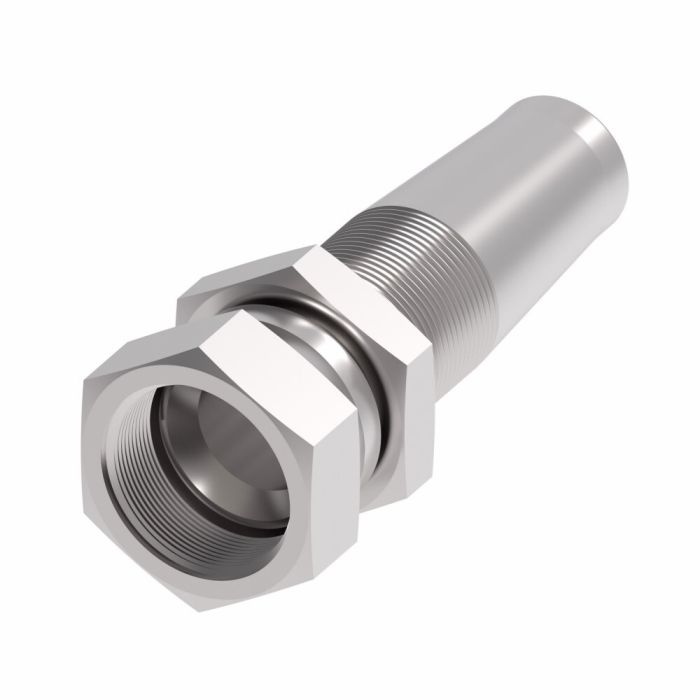

Aeroquip Reusable FTGS - Code

Description & Features

This Aeroquip Reusable FTGS features durable carbon steel construction for dependable performance in a wide range of applications. Designed for efficiency, these reusable hose fittings cut assembly times and boost production. This fitting offers a female UN end and a male UNEF end.

This Aeroquip reusable fitting offers SAE 37˚ swivel functionality. Refer to the Eaton fluid compatibility document for appropriate usage.

SKU: 2411-16S

Supplier Part Number (MPN): 2411-16S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.1 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.66 in	Dimension Standards SAE J514	Dimensions 3.1 in L x 1.5 in W x 1.5 in H	End Gender 1 Female	End Gender 2 Male	End Size 1 16	Finish Dura-Kote™	Fitting Type Nipple	For Use With 1503 Series Hoses	Hex Size 1-1/2 in	Hose Dash Size 16	Inside Diameter 0.82 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 2411 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12	Thread Type UN

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
2411-4-5S	5/16 in	7/16 in	05
2411-4S	1/4 in	1/4 in	04
2411-5S	5/16 in	5/16 in	05
2411-6-8S	1/2 in	9/16 in	08
2411-6S	3/8 in	3/8 in	06
2411-8-6S	3/8 in	1/2 in	06
2411-8-10S	5/8 in	3/4 in	10
2411-8S	1/2 in	3/4 in	08
2411-10-8S	1/2 in	7/8 in	08
2411-10-12S	3/4 in	5/8 in	12
2411-10S	5/8 in	7/8 in	10
2411-12-10S	5/8 in	3/4 in	10
2411-12S	3/4 in	3/4 in	12
2411-20S	1-1/4 in	1-1/4 in	20
2411-24S	1-1/2 in	1-1/2 in	24
2411-32S	2 in	2 in	32
