Aeroquip Reusable FTGS - Code

Description & Features

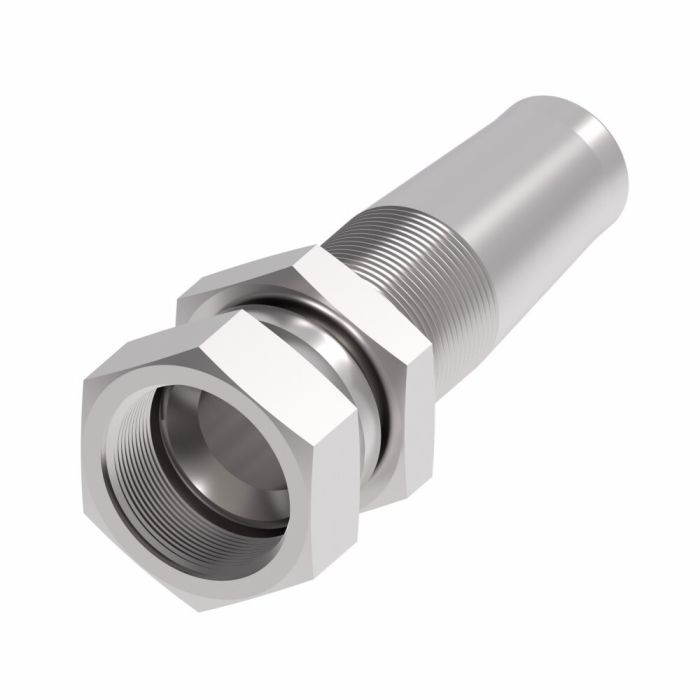

Designed for use with -32 dash size hose, this carbon steel nipple assembly from the Aeroquip 2411 Series connects via SAE 37° swivel geometry, with a female UN end on one side and a male UNS end on the other. The 2.88-inch hex size accommodates standard wrench engagement for straightforward field installation.

As a reusable fitting, the Aeroquip Reusable FTGS - Code can be disassembled and reassembled without specialized crimping equipment, which helps reduce assembly time in production and maintenance environments. Carbon steel construction provides reliable durability across a wide range of hydraulic fluid applications. Compatibility details are available in the referenced fluid compatibility documentation.

SKU: 2411-32S

Supplier Part Number (MPN): 2411-32S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.41 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2.55 in	Dimension Standards SAE J514	Dimensions 1-3/4 in ID	End Connection Torque 245 to 258 ft-lb	End Gender 1 Female	End Gender 2 Male	End Size 1 2 in	End Size 2 2 in	Finish Zinc-Plated	Fitting Type Nipple	For Use With 1503 Series Hoses	Hex Size 2-7/8 in	Hose Dash Size 32	Inside Diameter 1-3/4 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40	Series 2411 Series	Thread Sealant Without Thread Sealant	Thread Size 2-1/2-12	Thread Type UN

Product Questions & Answers (1)

Question by: Larry T on Apr 14, 2025, 12:10 PM

What size wrench do I need to tighten this thing up?

Answer by: Customer Support on Apr 16, 2025, 7:52 AM

You'll want a standard wrench that fits a 2.88-inch hex size.
