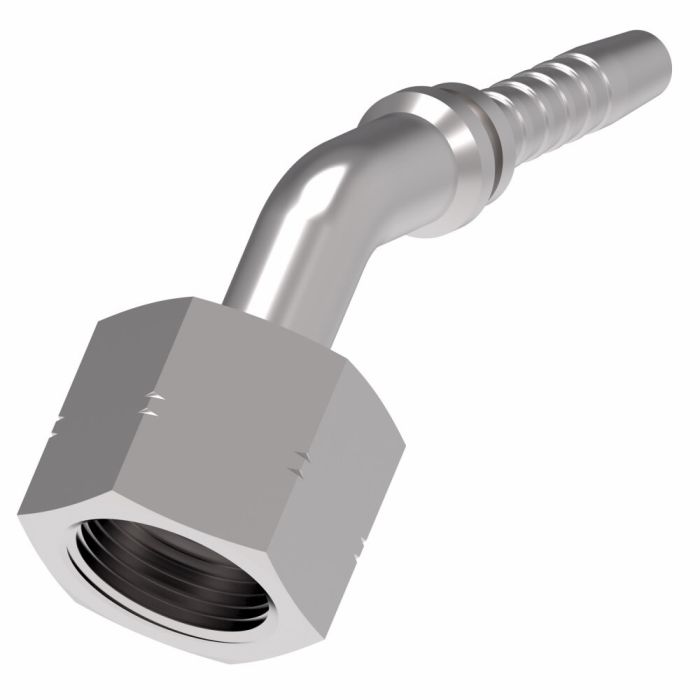

Engineered for high-pressure hydraulic systems, the EW ORS FemaleSwivel fitting is a reliable choice for demanding applications in mobile and mining equipment, shipyards, primary metal industries, and wind power installations. Crafted from durable carbon steel, it features Dura-Kote plating, providing superior corrosion resistance and ensuring extended service life. The innovative design of this Eaton Winner brand fitting helps maximize performance and uptime. With an ORFS (O-Ring Face Seal) connection type, it ensures a secure, leak-free fit, suitable for a variety of hoses, lines, or tubes.
This nipple assembly has a 45-degree elbow configuration with a hose dash size of -12, making it versatile for different hydraulic setups. The drop dimension of 1.5600 and a hex size of 1.42 offer precise fitment and easy installation in tight spaces. Designed to extend hose assembly life, this fitting is an essential component for maintaining operational efficiency in industrial applications.
SKU: 24241-12-12ZF
Supplier Part Number (MPN): 24241-12-12Z
Alternate Part Numbers: C1MY58, MI-08754432, MINO-00015X30011
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1MY58, Alternate Part Number MI-08754432, Alternate Part Number MINO-00015X30011
Application
Fittings are used in the high pressure, high reliability hydraulics system of mobile, mining equipment, shipyard, primary metal, wind power and various industrial markets.
Drop Dimension
1.56
Brand
Danfoss – Winner
Brand
Winner
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
ORFS
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hex Size 2
1.42
Hose Dash Size
-12
ICC
Hose Fittings
Item Type
Nipple Assembly
Language
English
Product Material
Carbon Steel
Product Width
1.42
Sub Brand
Winner
Supplier Part Number
24241-12-12Z
Product Weight
0.77 lbs
Product Questions & Answers (2)
Question by: Cody G on Jun 27, 2025, 11:33 AM
got a 24241-12-12Z i’m swapping out, is 24241-12-12ZF the same kind of elbow fitting?
Answer by: Customer Support on Jun 29, 2025, 8:42 AM
Same Winner by Danfoss and the supplier part number family matches, with 24241-12-12ZF tied to supplier part no. 24241-12-12Z. It’s a 45 degree elbow ORFS female flat seat, 2-piece crimp hose fitting in carbon steel, with a -12 hose dash size.
Question by: Sheila D on Apr 2, 2025, 10:54 AM
What kind of applications does this fitting work for?
Answer by: Customer Support on Apr 3, 2025, 6:04 PM
These fittings are used in high-pressure hydraulic systems. They're good for mobile and mining equipment, plus stuff like shipyards, metal production, wind power, and various other industrial uses.
