Din Bulkhead Union Complete

Description & Features

Manufactured from steel in a straight configuration, this DIN Bulkhead Union Complete provides a through-panel hydraulic connection with matching M36 x 2.0 male DIN tube fittings on both sides. Both connection points are rated at the S25 size designation, making this a symmetrical union suited for routing hydraulic lines through bulkheads, panels, or structural members where a secure, leak-resistant passage is required.

Supplied by Adaptall, the fitting measures 79mm in overall length with a 35mm panel engagement section and a 20mm secondary length. Across both sides, the wrench width is 46mm. The straight geometry and all-steel construction make it a practical choice for fixed-position hydraulic circuit routing in industrial machinery and mobile equipment applications.

SKU: 5040S-25C

Supplier Part Number (MPN): 5040S-25C

Specifications

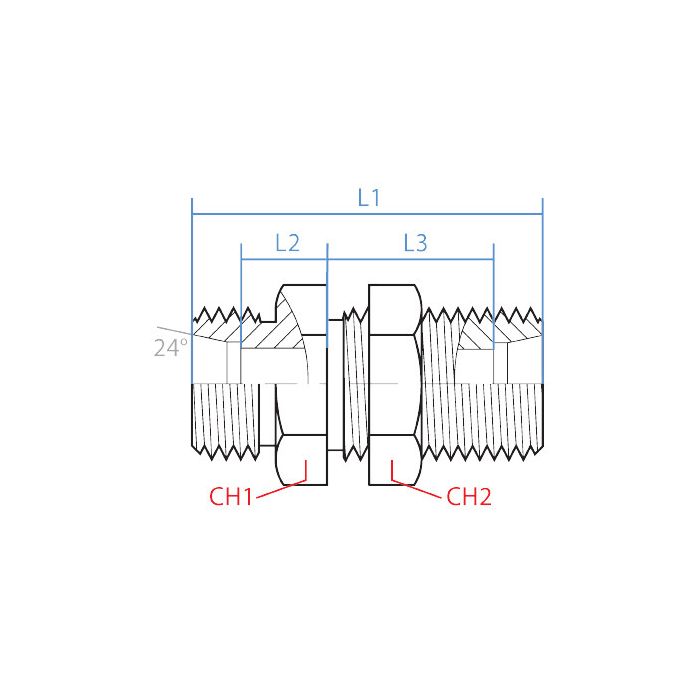

CH1 Width 46mm	CH2 Width 46mm	L1 Length 79mm	L2 Length 20mm	L3 Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040S-25C	Product Weight 1.08 lbs

Product Questions & Answers (1)

Question by: Rick R on Apr 10, 2025, 12:32 PM

Both sides on this fitting are M36 x 2.0 male DIN tube, that right? Just want to make sure before I order a pair of matching fittings to go with it.

Answer by: Customer Support on Apr 12, 2025, 6:59 AM

Correct on both counts. Each side carries an M36 x 2.0 male DIN tube connection at the S25 size designation, so the fitting is fully symmetrical end to end. Whatever DIN tube fittings you're pairing it with, they'll need to match that M36 x 2.0 thread spec on both sides.
