05MJ-05MJ 90 DEG ELBOW

Description & Features

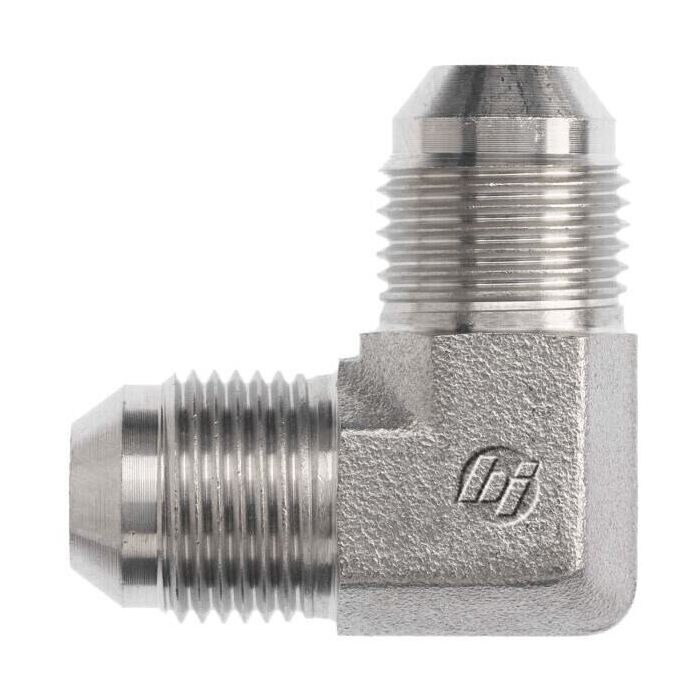

This forged steel 90-degree elbow features male JIC SAE 37-degree flare connections on both ends. The 05MJ-05MJ 90 DEG ELBOW is part of the 2500-FG series of hydraulic adapters, designed to withstand dynamic pressures up to 6,000 psi.

Each connection features a 1/2-20 thread size manufactured to SAE J514 specifications, with a centerline length of 0.950 mm.

SKU: 2500-05-05-FG

Supplier Part Number (MPN): 2500-05-05-FG

Alternate Part Numbers: 2500-05-05, A2039-5-5S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2500-05-05-FG	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Tommy S on Sep 3, 2025, 3:48 PM

Both ends are male JIC on this thing -- so what kind of fitting do I need on the hose or line side to mate up with it?

Answer by: Customer Support on Sep 5, 2025, 6:20 AM

Male JIC fittings connect to female JIC seats, so whatever hose ends or port fittings you're threading into need to be female JIC with the matching 37-degree flare seat. Both ends of this elbow are 1/2-20 male JIC, built to SAE J514 spec, so you'd want female JIC fittings at that same thread size on both sides to get a proper seal.
