06MJ-06MJ 90 ELB

Description & Features

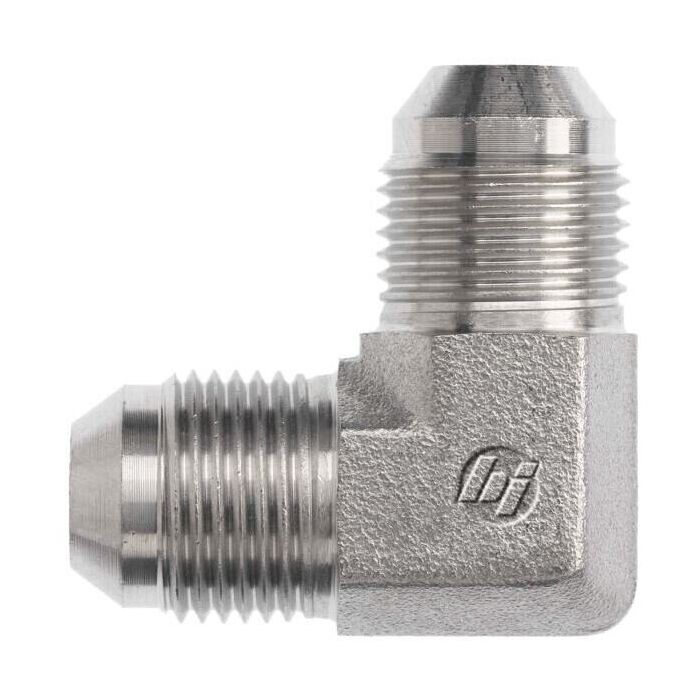

The 06MJ-06MJ 90 ELB by Brennan Industries Inc is a forged steel 90-degree elbow adapter designed for industry-specific applications. With a centerline length of 1.060 mm and an overall length of 1.060 mm this component is crafted to precise standards.

Engineered to handle up to 6 000 psi of maximum dynamic pressure this elbow adapter meets the SAE J514 specification for both B1 and B2 threads ensuring compatibility and reliability. Both threads are 9/16-18 in size and feature a Male JIC SAE 37-degree flare type.

Ideal for robust industrial environments the 06MJ-06MJ 90 ELB is part of the 2500-FG series and is manufactured using high-quality forged steel. The item occupies a cubic inch space of 0.212 and each thread drill measures 0.297 mm.

Supplier Part Number: 2500-06-06-FG

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Cubic Inch Space L x W x H Dimensions 0.212 cu-in	Dimension Standards SAE J514	Dimensions 1.06 in L	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 0.563 in	l Dimensions 1.06 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2500-FG Series	Thread 2 Drill Dimensions 0.297 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 9/16-18

Product Questions & Answers (1)

Question by: Hank B on Apr 4, 2026, 7:35 AM

what's the max pressure this elbow can handle? got a line running around 5,500 psi and need to know if this'll hold up

Answer by: Customer Support on Apr 6, 2026, 8:42 AM

Rated for 6,000 psi maximum dynamic pressure, so 5,500 psi falls well within its working range. The fitting is forged steel and built to SAE J514 spec, which keeps it consistent and reliable under that kind of load.
