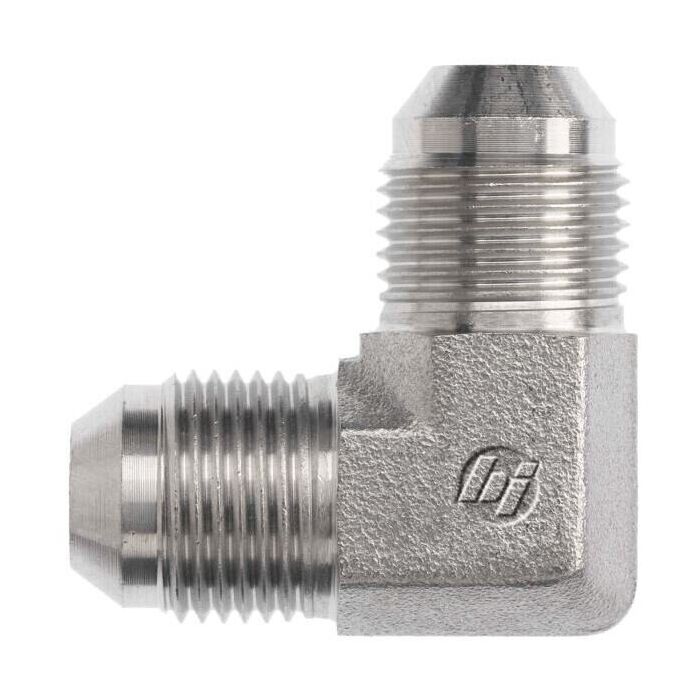

BRENNAN 06MJ-06MJ 90 DEG ELBOW STNLS

Description & Features

The Brennan 06MJ-06MJ 90 DEG ELBOW STNLS is manufactured from forged stainless steel for durability and corrosion resistance.

Featuring male JIC SAE 37-degree flare connections on both ends, this elbow ensures secure and reliable connections in hydraulic systems. With a maximum dynamic pressure rating of 6,000 PSI, it is suitable for demanding applications. Each thread size measures 9/16-18, adhering to SAE J514 specifications.

SKU: 2500-06-06-SS

Supplier Part Number (MPN): 2500-06-06-SS

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Cubic Inch Space L x W x H Dimensions 0.212 cu-in	Dimension Standards SAE J514	Dimensions 1.06 in L	Fitting Type 90 deg Elbow	Hex Size 0.563 in	l Dimensions 1.06 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 6000 psi	Series 2500-FG Series	Thread 2 Drill Dimensions 0.297 in	Thread B1 Drill Dimensions 0.297 in	Thread B2 Drill Dimensions 0.297 in	Thread Size 9/16-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
2500-04-04-SS	1/4 in	1/4 in	7/16-20	7/16 in
2500-08-08-SS	1/2 in	1/2 in	3/4-16	3/4 in
2500-12-12-SS	3/4 in	3/4 in	1-1/16-12	1.06 in
2500-16-16-SS	1 in	1 in	1-5/16-12	1.312 in
2500-20-20-SS	1-1/4 in	1-1/4 in	1-5/8-12	1-5/8
