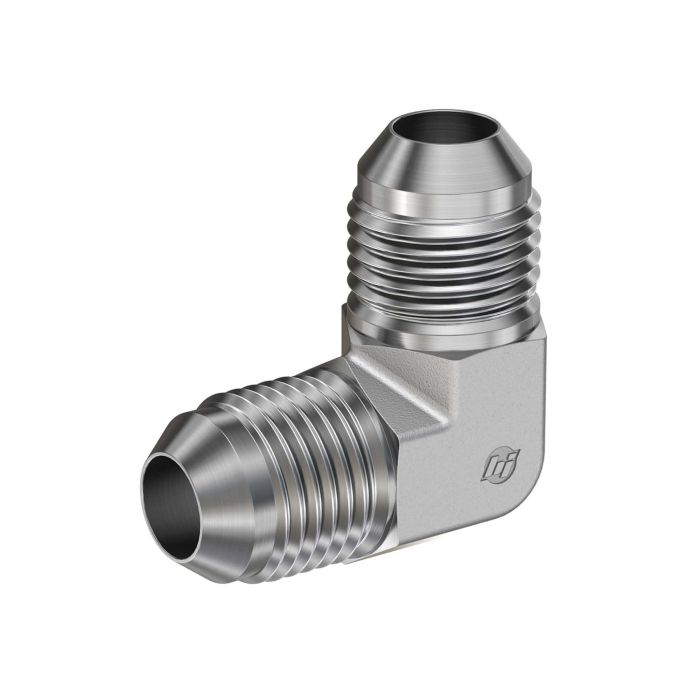

main product photo

90 DEG MJIC X MJIC

Ask A Question

Description & Features

This 90 DEG MJIC X MJIC fitting is manufactured from forged stainless steel for durability and corrosion resistance. Featuring male JIC 37-degree flare connections on both ends, this elbow is designed for secure and reliable hydraulic connections.

With a centerline length of 1.250 inches, this fitting is suitable for applications requiring a compact 90-degree turn. It is designed to withstand dynamic pressures up to 6,000 psi, making it suitable for demanding hydraulic applications.

SKU: 2500-08-08-SS

Supplier Part Number (MPN): 2500-08-08-SS

Alternate Part Numbers: AJ8E

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Cubic Inch Space L x W x H Dimensions
0.457 cu-in
Dimension Standards
SAE J514
Dimensions
1-1/4 in L
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1-1/4 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2500-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.391 in
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Chad B on Jan 27, 2026, 7:30 PM
Is this elbow made to hold up outside where it might get rained on and such?
Answer by: Customer Support on Jan 29, 2026, 12:26 PM
Forged stainless steel is the raw material, so it offers good durability and corrosion resistance in environments where moisture is present.
