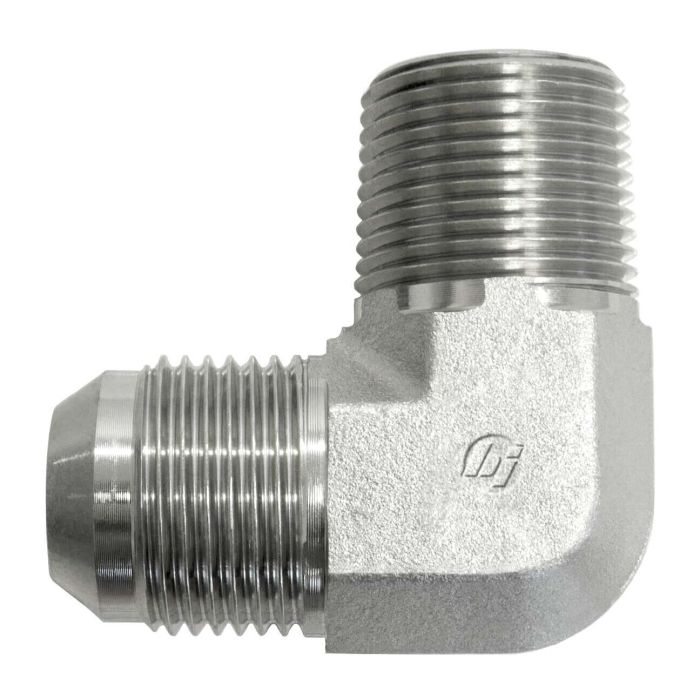

316 S/S 90 DEG 3 MJIC X 1/8IN MNPT

Crafted from forged stainless steel, this 316 S/S 90 DEG 3 MJIC X 1/8IN MNPT elbow fitting ensures robust performance and durability in demanding industrial environments. Its 90-degree angle facilitates efficient directional flow, making it ideal for applications where space is restricted or precise fluid routing is required. The fitting features a Male JIC SAE 37-degree flare connection with a thread size of 3/8-24, adhering to SAE J514 standards, ensuring compatibility and reliability in high-pressure systems up to 6,000 psi.

The opposing end of the fitting provides a Male NPTF connection with a 1/8-27 thread size, conforming to SAE J476 standards, making it suitable for various hydraulic and industrial applications. With an overall length of 0.720 mm and a centerline length of 0.830 mm, this compact fitting occupies minimal space while maintaining a cubic inch space of 0.431. Whether applied in construction, agricultural, or manufacturing settings, this elbow fitting proves to be a versatile and dependable component in your hydraulic system.

SKU: 2501-03-02-SS

Supplier Part Number (MPN): 2501-03-02-SS
