04MJ-02MP 90 ELB BRASS

Ask A Question

Description & Features

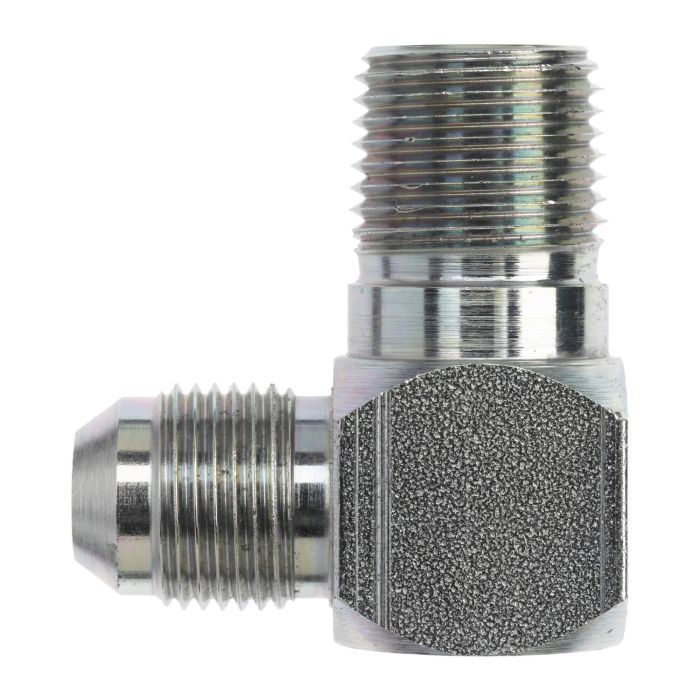

Crafted with precision this 90-degree elbow adapter is manufactured by Brennan Industries Inc ensuring reliability in industrial applications. The component is forged brass providing a robust and durable solution for various connection requirements.

Featuring a Male JIC SAE 37-degree flare on one end and a Male NPTF on the other this adapter provides exceptional compatibility with industry-standard threads. The centerline length measures 0.890 mm while the overall length is 0.780 mm making it a compact yet efficient part within critical setups.

Thread specifications include SAE J514 for B1 and SAE J476 for B2 ensuring adherence to stringent industry standards. This component also includes PROP-65 warning for California residents.

MPN: 2501-04-02-B

Supplier Part Number: 2501-04-02-B

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
0.485 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
0.78 in L
Finish
Natural
Fitting Type
90 deg Elbow
Hex Size
7/16 in
l Dimensions
0.78 in
Material
Brass
Material Construction
UNS CA377 Brass
Series
2501-FG Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.188 in
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Johnny B on Jan 29, 2026, 11:06 AM
trying to hook a JIC line to a pipe thread port, will this elbow do that or am I mixing stuff up
Answer by: Customer Support on Jan 31, 2026, 6:59 AM
For connecting those two thread styles, it matches up as a male JIC SAE 37 degree flare on one end and a male NPTF on the other. On this part the JIC side is 7/16-20 (SAE J514) and the NPTF side is 1/8-27 (SAE J476).
Question by: Judy T on Nov 30, 2025, 9:20 AM
thread sizes on this thing, is it a 7/16-20 JIC on one end and 1/8-27 NPT on the other, or did I read that backwards?
Answer by: Customer Support on Dec 1, 2025, 3:47 PM
You got it right. The JIC end is 7/16-20 with a 37-degree male flare, and the other end is a 1/8-27 male NPTF. The JIC side meets SAE J514 and the NPTF side meets SAE J476, so both ends follow standard specs. Just make sure your mating fittings match those thread sizes before you go to put it together.
Question by: Lyle A on Feb 9, 2026, 8:12 AM
Will this elbow work with standard fittings or are there special considerations?
Answer by: Customer Support on Feb 10, 2026, 8:43 AM
This 90-degree elbow adapter features a Male JIC SAE 37-degree flare on one end and a Male NPTF on the other, ensuring compatibility with industry-standard threads adhering to SAE J514 and SAE J476 specifications.
