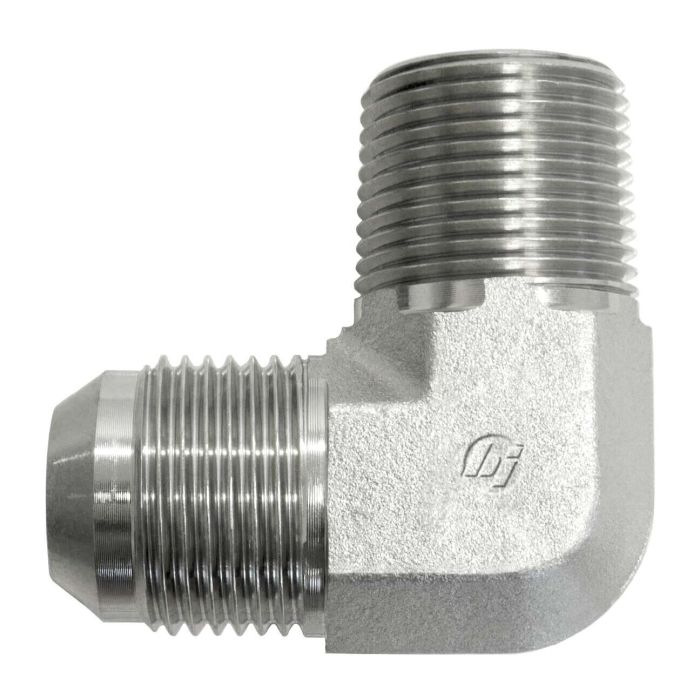

main product photo

04MJ-04MP 90 ELB

Ask A Question

Description & Features

Engineered for seamless integration the 04MJ-04MP 90 ELB is a reliable component from Brennan Industries Inc. Crafted from premium forged steel this 90-degree elbow offers exceptional durability and strength. It has a centerline length of 1.050 mm and an overall length of 1.090 mm.

This elbow features a male JIC SAE 37-degree flare thread on one end and a male NPTF thread on the other adhering to SAE J514 and SAE J476 specifications. The 7/16-20 and 1/4-18 thread sizes ensure a secure and precise fit suitable for applications requiring high-pressure resistance up to 6 000 PSI.

The compact cubic inch space of 1.026 makes this elbow an excellent choice for space-constrained environments. Designed with attention to detail this forged elbow maximizes performance in demanding conditions.

Supplier Part Number: 2501-04-04-FG

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.026 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.09 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.09 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.281 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Scott S on Jan 23, 2026, 6:04 AM
trying to hook a JIC line into a 1/4 NPTF port, is this the elbow that does that?
Answer by: Customer Support on Jan 24, 2026, 5:05 PM
For tying those two thread styles together, it matches up as a 90 degree elbow with a male JIC SAE 37 degree flare on one end (7/16-20, SAE J514) and a male NPTF on the other (1/4-18, SAE J476).
Question by: Roy G on Aug 28, 2025, 8:56 PM
Just want to make sure, this elbow is steel right?
Answer by: Customer Support on Aug 30, 2025, 6:19 AM
Yes, this 90-degree elbow is crafted from forged steel, so it's plenty strong.
