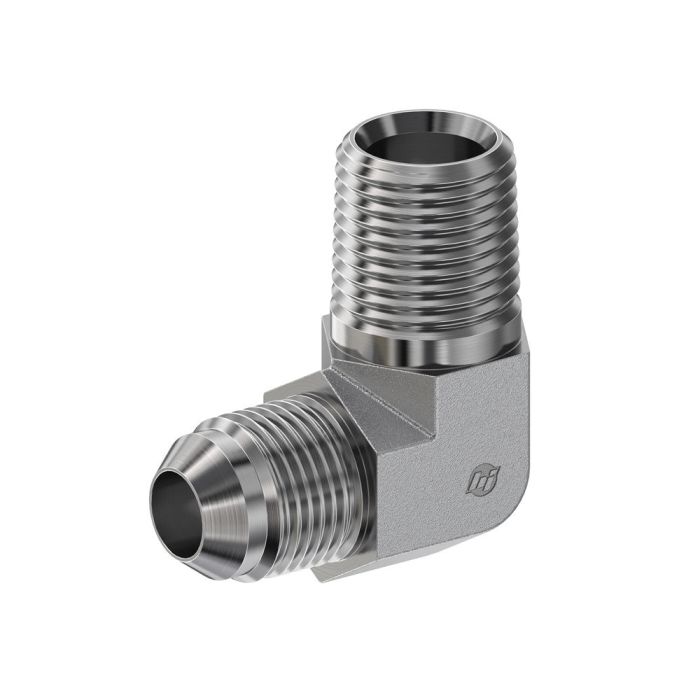

main product photo

04MJ-04MP 90 ELB STNLS

Ask A Question

Description & Features

Crafted from forged stainless steel, the 04MJ-04MP 90 ELB STNLS is a durable and reliable choice for hydraulic applications requiring high-performance connections. This 90-degree elbow fitting features a Male JIC SAE 37-degree flare on one end and a Male NPTF on the other, ensuring secure and leak-proof connections. With a maximum dynamic pressure rating of 6,000 psi, it is designed to withstand challenging industrial environments.

The fitting's dimensions include a centerline length of 1.050 mm and an overall length of 1.090 mm, making it compact and efficient for tight spaces. Complying with SAE J514 and SAE J476 standards, this elbow fitting meets rigorous industry requirements for quality and performance. Its versatile design is suitable for various industrial applications, providing flexibility and ease of use.

SKU: 2501-04-04-SS

Supplier Part Number (MPN): 2501-04-04-SS

Alternate Part Numbers: AJ4-4ME, SS-2501-04-04, SS2501-4-4

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.026 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.09 in L
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.09 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Eddie G on May 12, 2025, 11:47 AM
Will this fitting hold up in a hydraulic system that sees pressures up to 6,000 psi?
Answer by: Customer Support on May 14, 2025, 10:46 AM
Absolutely, this 90-degree elbow fitting is designed to handle dynamic pressures up to 6,000 psi, making it suitable for demanding hydraulic applications.
