04MJ-06MP 90 ELB FORG

Description & Features

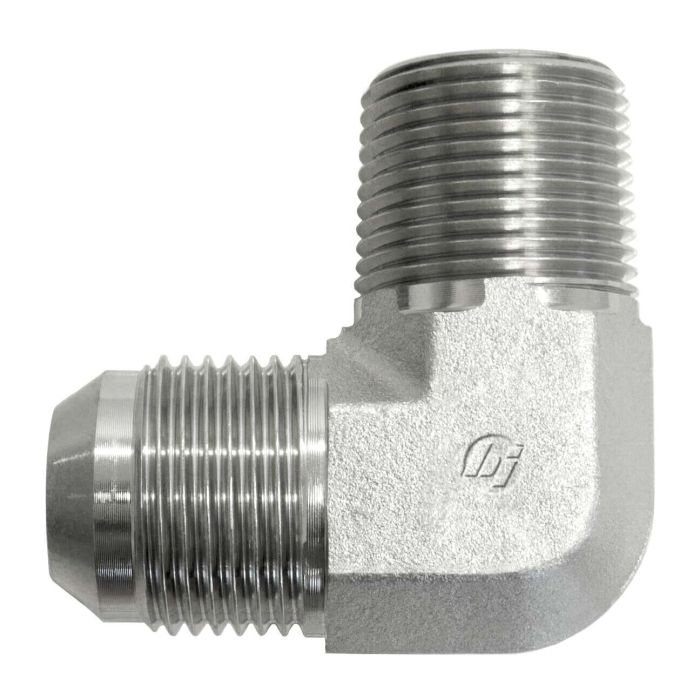

This forged steel 90-degree elbow features a 3/8-18 Male NPTF thread on one end, conforming to SAE J476 standards. The other end includes a 7/16-20 Male JIC SAE 37-degree flare thread, manufactured to SAE J514 specifications. This 04MJ-06MP 90 ELB FORG is part of the 2501-FG series.

With a maximum dynamic pressure rating of 6,000 PSI, this elbow is suitable for demanding applications. The centerline length is 1.120 inches, and the overall length is 1.220 inches.

SKU: 2501-04-06-FG

Supplier Part Number (MPN): 2501-04-06-FG

Alternate Part Numbers: 2501-04-06, 2501-4-6, A2024-6-4S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-04-06-FG	Product Weight 0.17 lbs

Product Questions & Answers (1)

Question by: Rick W on Nov 25, 2025, 9:45 AM

What's the max pressure this elbow can handle?

Answer by: Customer Support on Nov 26, 2025, 8:11 PM

It's rated for a dynamic pressure of up to 6,000 PSI, so it should be good for demanding jobs.
