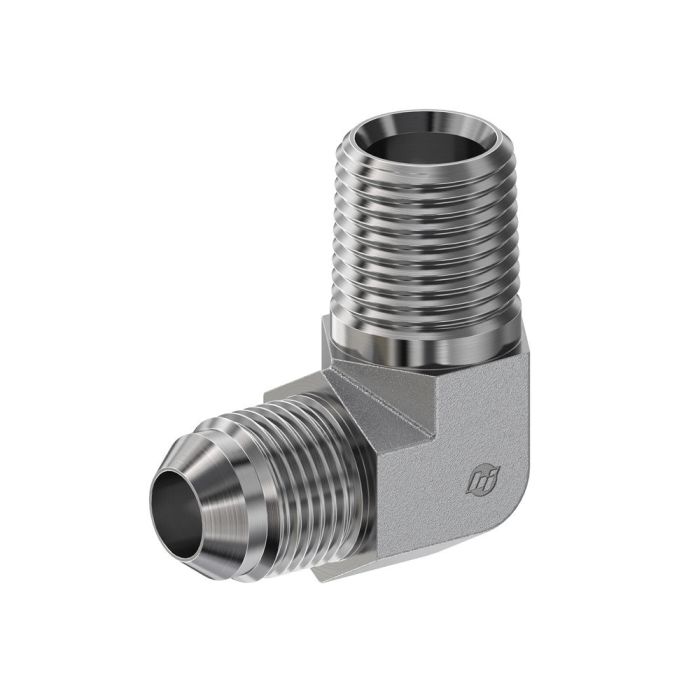

main product photo

04MJ-06MP 90 ELBOW STNLS

Ask A Question

Description & Features

Built for demanding environments, the 90-degree elbow fitting is crafted from forged stainless steel, ensuring exceptional durability and corrosion resistance. It features a Male JIC SAE 37-degree flare on one end and a Male NPTF on the other, providing reliable connections for hydraulic systems. With a maximum dynamic pressure capacity of 6,000 PSI, this elbow is ideal for high-pressure applications.

Designed according to SAE J514 and SAE J476 standards, this fitting offers precision and compatibility with a wide range of hydraulic components. The compact design, with a centerline length of 1.120 mm and an overall length of 1.220 mm, allows for efficient installations in tight spaces. The 04MJ-06MP 90 ELBOW STNLS is a versatile component that meets the rigorous demands of industrial settings.

SKU: 2501-04-06-SS

Supplier Part Number (MPN): 2501-04-06-SS

Alternate Part Numbers: AJ4-6ME

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.788 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.22 in L
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1.22 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20 x 3/8-18

Product Questions & Answers (1)

Question by: Wade D on Dec 8, 2025, 8:54 AM
Would this fitting work okay with my hydraulic system, which needs to handle pressures around 5,500 PSI?
Answer by: Customer Support on Dec 10, 2025, 6:37 AM
Yes, this 90-degree elbow fitting is designed to handle dynamic pressures up to 6,000 PSI, making it suitable for your system.
