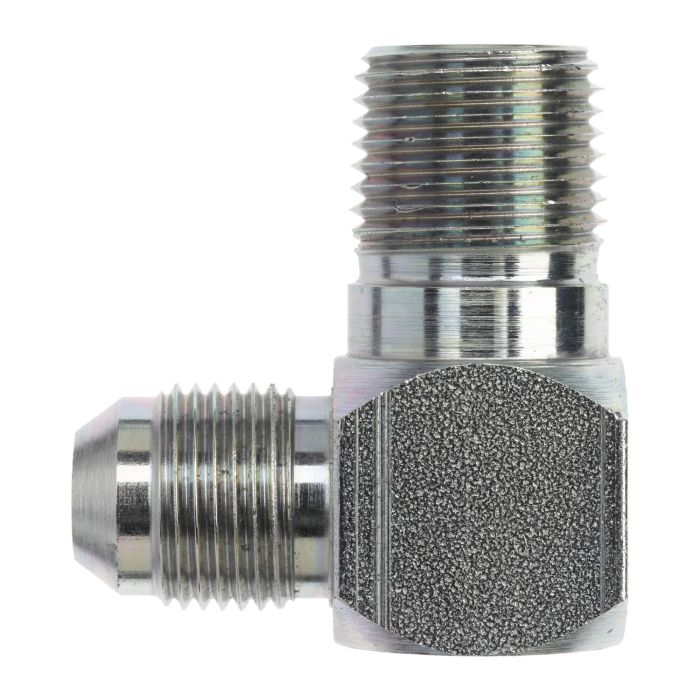

06MJ-06MP 90 ELB BRASS

Description & Features

This high-quality elbow adapter branded by Brennan Industries Inc boasts a 90-degree angle made from premium forged brass. Designed with precision it adheres to SAE J514 and SAE J476 specifications ensuring compatibility and reliability in demanding environments.

The 06MJ-06MP 90 ELB BRASS provides male JIC SAE 37-degree flare thread on one end and male NPTF thread on the other making it versatile for various industrial applications. With a centerline length of 1.140 mm and an overall length of 1.220 mm it fits seamlessly into compact spaces.

The thread sizes are 9/16-18 for B1 and 3/8-18 for B2 with corresponding drill sizes of 0.297 mm and 0.406 mm respectively. This adapter is a crucial component that meets strict quality standards ensuring longevity and performance.

California Residents: PROP-65 WARNING

Supplier Part Number: 2501-06-06-B

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.812 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.22 in L
Finish
Natural
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1.22 in
Material
Brass
Material Construction
UNS CA377 Brass
Series
2501-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.406 in
Thread Size
3/8-18, 9/16-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Price Action
04MJ-02MP 90 ELB BRASS

2501-04-02-B

1/4 in

1/8 in

04MJ-04MP 90 ELB BRASS

2501-04-04-B

1/4 in

1/4 in

04MJ-06MP 90 DEG ELBOW BRASS

2501-04-06-B

1/4 in

3/8 in

06MJ-04MP 90 ELB BRASS

2501-06-04-B

3/8 in

1/4 in

06MJ-08MP 90 DEG ELBOW BRASS

2501-06-08-B

3/8 in

1/2 in

08MJ-04MP 90° ELBOW BRASS

2501-08-04-B

1/2 in

1/4 in

08MJ-06MP 90 ELB BRASS

2501-08-06-B

1/2 in

3/8 in

08MJ-08MP 90 ELB BRASS

2501-08-08-B

1/2 in

1/2 in

08MJ-12MP 90° ELBOW FORGED BRASS

2501-08-12-B

1/2 in

3/4 in

10MJ-06MP 90 ELB BRASS

2501-10-06-B

5/8 in

3/8 in

10MJ-08MP 90 ELB BRASS

2501-10-08-B

5/8 in

1/2 in

BRASS 90DEG #10 MJIC X 3/4

2501-10-12-B

5/8 in

3/4 in

12MJ-08MP 90 ELB BRASS

2501-12-08-B

3/4 in

1/2 in

12MJ-12MP 90 DEG ELBOW BRASS

2501-12-12-B

3/4 in

3/4 in

12MJ-16MP 90 ELBOW BRASS

2501-12-16-B

3/4 in

1 in

16MJ-12MP 90 ELB BRASS

2501-16-12-B

1 in

3/4 in

16MJ-16MP 90 ELB BRASS

2501-16-16-B

1 in

1 in

90 DEG MALE JIC TO MALE NPT

2501-20-20-B

1-1/4 in

1-1/4 in

Product Questions & Answers (2)

Question by: Carl H on Jun 3, 2025, 2:13 PM
trying to swap out an elbow on a line, is this one the JIC flare to NPTF kind or am i lookin at the wrong thing
Answer by: Customer Support on Jun 5, 2025, 7:50 AM
Youve got the right style if you need a 90 degree elbow with male JIC SAE 37 degree flare on one end and male NPTF on the other. The JIC side is 9/16-18 (SAE J514) and the NPTF side is 3/8-18 (SAE J476).
Question by: Ricky A on Mar 3, 2026, 9:50 AM
Got a fitting that needs a 37-degree flare on one end and pipe thread on the other, does this brass elbow cover both of them in a 90-degree turn?
Answer by: Customer Support on Mar 5, 2026, 8:46 AM
Yeah, that's exactly what this one does. One end is a male JIC SAE 37-degree flare at 9/16-18, and the other end is male NPTF at 3/8-18. So if you're routing a JIC line into a port that takes pipe thread and you need to make that 90-degree turn without adding extra fittings, this adapter handles it in one piece. Both thread types are forged into the brass, so it's a solid connection on both sides.
