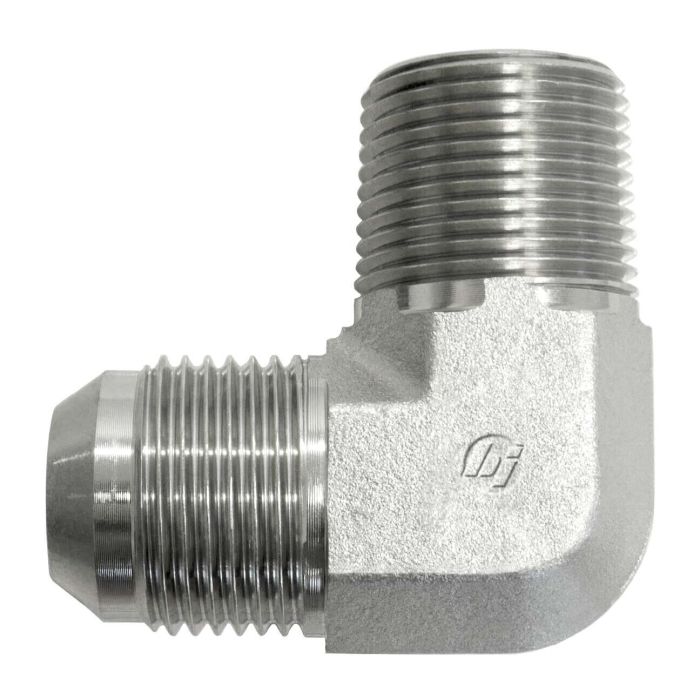

main product photo

90D -8MP X -6MJ (SS)

Ask A Question

Description & Features

Constructed from forged stainless steel, this 90-degree elbow connector is engineered for high-performance applications requiring durability and reliability. Designed for robust hydraulic systems, it supports a maximum dynamic pressure of 6,000 PSI, making it suitable for demanding industrial environments. Its compact form factor features an overall length of 1.470 mm and a centerline length of 1.220 mm, optimizing installation in tight spaces.

This connector features a Male JIC SAE 37-degree flare on one end with a thread size of 9/16-18, compliant with SAE J514 standards, and a Male NPTF on the other end with a thread size of 1/2-14, adhering to SAE J476 standards. The precise threading ensures secure and leak-proof connections, enhancing the integrity of hydraulic systems.

SKU: 2501-06-08-SS

Supplier Part Number (MPN): 2501-06-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.766 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.47 in L
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.47 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
1/2-14 x 9/16-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
316 S/S 90 DEG 3 MJIC X 1/8IN MNPT

2501-03-02-SS

3/16 in

1/8 in

3/8-24 x 1/8-27

SS #4 MJ X #2 MP 90*

2501-04-02-SS

1/4 in

1/8 in

1/8-27, 7/16-20

04MJ-04MP 90 ELB STNLS

2501-04-04-SS

1/4 in

1/4 in

7/16-20, 1/4-18

04MJ-06MP 90 ELBOW STNLS

2501-04-06-SS

1/4 in

3/8 in

7/16-20 x 3/8-18

BRENNAN 05MJ-04MP 90 Elbow Stnls

2501-05-04-SS

5/16 in

1/4 in

1/2-20 x 1/4-18

06MJ-02MP 90DEG Elbow Stnls

2501-06-02-SS

3/8 in

1/8 in

9/16-18 x 1/8-27

06MJ-04MP 90 ELB STNLS

2501-06-04-SS

3/8 in

1/4 in

1/4-18 x 9/16-18

06MJ-06MP 90 ELB STNLS

2501-06-06-SS

3/8 in

3/8 in

3/8-18, 9/16-18

06MJ-12MP 90 ELB STAINLESS STEEL BRENNAN

2501-06-12-SS

3/8 in

3/4 in

9/16-18, 3/4-14

08MJ-04MP 90 ELB STNLS

2501-08-04-SS

1/2 in

1/4 in

3/4-16, 1/4-18

SS 90DEG #8 MJIC X #6 M-PIPE

2501-08-06-SS

1/2 in

3/8 in

3/4-16 x 3/8-18

08MJ-08MP 90 ELB STNLS

2501-08-08-SS

1/2 in

1/2 in

3/4-16 x 1/2-14

08MJ-16MP 90 S/S

2501-08-16-SS

1/2 in

1 in

3/4-16 x 1-11-1/2

10MJ-06MP 90 ELBOW STNLS

2501-10-06-SS

5/8 in

3/8 in

7/8-14 x 3/8-18

10MJ-08MP 90 ELBOW STNLS

2501-10-08-SS

5/8 in

1/2 in

1/2-14 x 7/8-14

10MJ-12MP 90° ELBOW STNLS

2501-10-12-SS

5/8 in

3/4 in

3/4-14, 7/8-14

12MJ-06MP 90 ELB STNLS

2501-12-06-SS

3/4 in

3/8 in

1-1/16-12 x 3/8-18

12MJ-08MP 90 ELBOW STNLS

2501-12-08-SS

3/4 in

1/2 in

1-1/16-12 x 1/2-14

12MJ-12MP 90 ELB STNLS

2501-12-12-SS

3/4 in

3/4 in

1-1/16-12 x 3/4-14

12MJ-16MP 90 ELB STNLS

2501-12-16-SS

3/4 in

1 in

1-1/16-12 x 1-11-1/2

male-16 jic x male -8 npt ss

2501-16-08-SS

1 in

1/2 in

1-5/16-12 x 1/2-14

BRENNAN 16MJ-12MP 90 ELBOW STNLS

2501-16-12-SS

1 in

3/4 in

3/4-14, 1-5/16-12

16MJ-16MP 90 ELB STNLS

2501-16-16-SS

1 in

1 in

1-5/16-12 x 1-11-1/2 x 1-5/16-12

20MJ X 20MP 90DEG SS

2501-20-20-SS

1-1/4 in

1-1/4 in

1-1/4-11-1/2, 1-5/8-12

SS 24MJ-24MP 90 ELBOW

2501-24-24-SS

1-1/2 in

1-1/2 in

1-7/8-12, 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Lee M on Nov 6, 2025, 10:41 AM
Is this elbow gonna fit right in place of a standard fitting?
Answer by: Customer Support on Nov 8, 2025, 6:56 AM
This 90-degree elbow is made to comply with SAE J514 and SAE J476 standards for its JIC and NPTF threads, respectively, which should make it compatible with other standard fittings that meet those specs.
