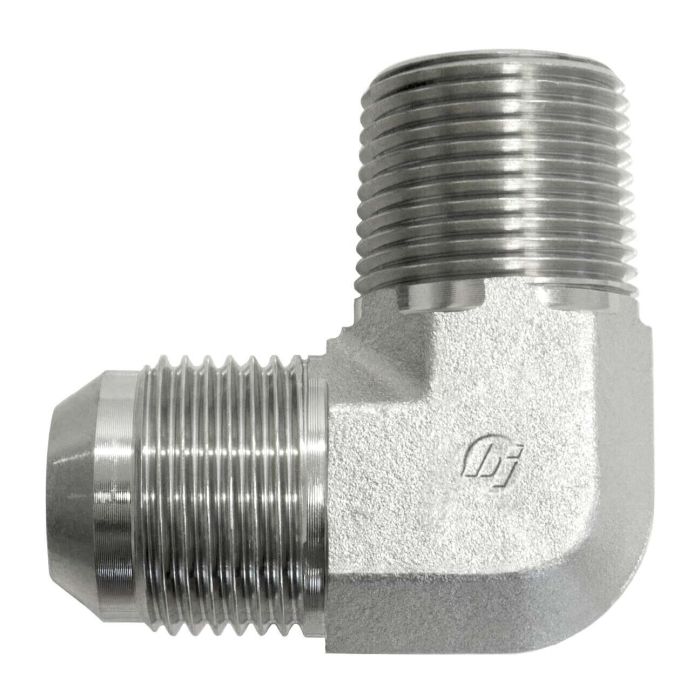

main product photo

06MJ-12MP 90 ELB

Ask A Question

Description & Features

The 06MJ-12MP 90 ELB is a robust and reliable component designed by Brennan Industries Inc. This forged steel elbow part of the 2501-FG series is crafted to meet high standards in dynamic pressure applications supporting up to 5 500 PSI.

Featuring a centerline length of 1.310 mm and an overall length of 1.590 mm it ensures precise fit and performance. With Thread B1 and Thread B2 sizes of 9/16-18 and 3/4-14 respectively this part adheres to SAE J514 and SAE J476 specifications providing a secure connection with Male JIC SAE 37 Degree Flare and Male NPTF thread types.

Its compact cubic inch space of 4.147 makes it suitable for various industrial setups where space is a constraint but high performance is critical.

Supplier Part Number: 2501-06-12-FG

MPN: 2501-06-12-FG

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.147 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.59 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.59 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
9/16-18, 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Frank T on Oct 26, 2025, 7:07 PM
Reckon this elbow fitting can handle a good bit of pressure? I'm pushin' around 5,500 PSI in my system.
Answer by: Customer Support on Oct 28, 2025, 6:06 AM
This 06MJ-12MP elbow is rated to handle dynamic pressure up to 5,500 PSI so it should work well for your application.
Question by: Rick P on May 20, 2025, 8:04 PM
got a hydraulic line running 9/16-18 JIC on one end and need to tie into a 3/4-14 NPT port at a 90 degree turn, this fitting do that?
Answer by: Customer Support on May 22, 2025, 6:49 AM
That's what this fitting is built for. One end is a 9/16-18 Male JIC SAE 37 Degree Flare, the other is a 3/4-14 Male NPTF. So you're getting that 90-degree change of direction along with the thread transition all in one piece. The JIC side meets SAE J514 and the NPTF side meets SAE J476, so both connections are spec'd out properly.
