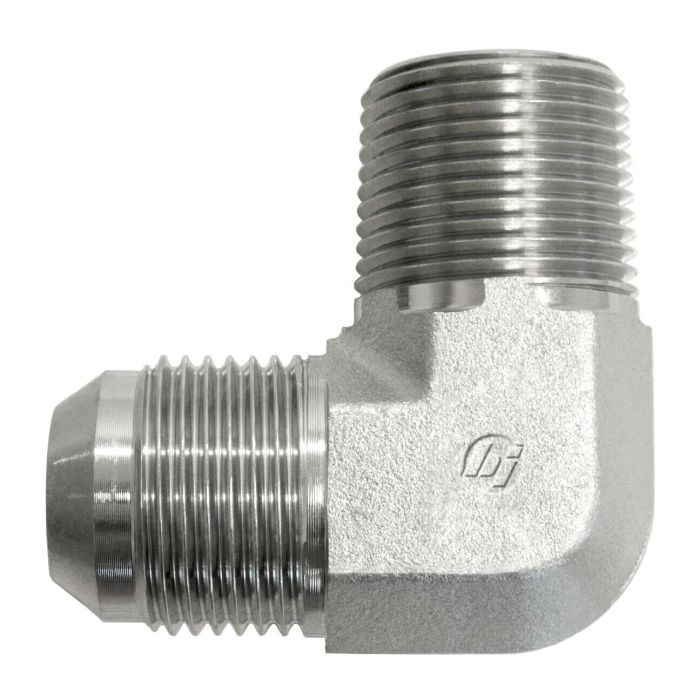

08MJ-04MP 90 ELB FORG

Constructed from forged steel, this 90-degree elbow fitting transitions between a 3/4-16 Male JIC SAE 37-degree flare connection (per SAE J514) and a 1/4-18 Male NPTF thread (per SAE J476), making it well-suited for hydraulic line routing where a right-angle change of direction is required between JIC and NPTF ports. The forged steel construction supports a maximum dynamic pressure rating of 6,000 PSI, appropriate for demanding hydraulic circuit applications.

The 08MJ-04MP 90 Elb Forg is manufactured by Brennan Industries under the 2501-Fg series. With a centerline length of 1.250 inches and an overall length of 1.220 inches, this fitting maintains a compact envelope suitable for space-constrained installations. California residents should note that this product is subject to Prop 65 warnings as indicated by Brennan Industries.

SKU: 2501-08-04-FG

Supplier Part Number (MPN): 2501-08-04-FG

Alternate Part Numbers: 2501-08-04, A2024-4-8S
