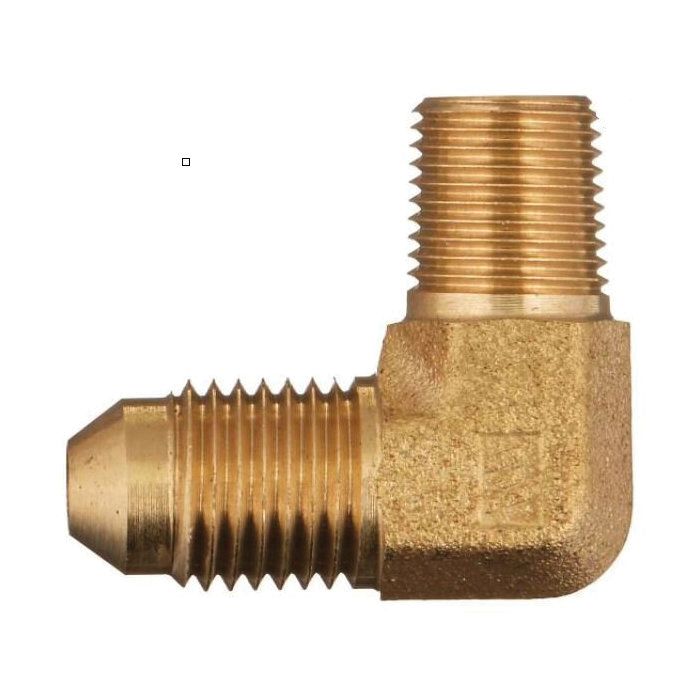

08MJ-08MP 90 ELB BRASS

Ask A Question

Description & Features

Crafted by Brennan Industries Inc the 08MJ-08MP 90 ELB BRASS is designed to deliver reliable performance in industrial applications. This elbow adapter features a robust forged brass construction ensuring durability and resistance to corrosion.

With a male JIC SAE 37-degree flare fitting on one end and a male NPTF fitting on the other it conforms to both SAE J514 and SAE J476 specifications. The centerline length is 1.330 mm and the overall length is 1.470 mm making it a versatile component for a range of setups. The thread sizes are 3/4-16 for B1 and 1/2-14 for B2 ensuring secure connections.

Its compact design occupying just 2.95 cubic inches allows for easy integration into existing systems without unnecessary bulk. Prop 65 compliant it meets stringent safety standards for industrial use.

MPN: 2501-08-08-B

Supplier Part Number: 2501-08-08-B

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.47 in L
Finish
Natural
Fitting Type
90 deg Elbow
Hex Size
7/8 in
Material
Brass
Material Construction
CA377 Brass
Maximum Operating Pressure
6000 psi
Series
2501-FG Series
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.531 in
Thread Drill 2 Dimensions
0.531 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Question by: Rod W on Aug 2, 2025, 11:38 AM
got a 1/2 inch NPTF port on a manifold block and need to make a 90 degree turn into a JIC line, this the right piece for that?
Answer by: Customer Support on Aug 4, 2025, 11:19 AM
That setup matches exactly what this fitting handles. The NPTF end is 1/2-14, so it threads straight into a standard 1/2 inch NPTF port, and the other end is a 3/4-16 male JIC SAE 37-degree flare, which connects to your JIC line. Forged brass construction means it holds up well in typical hydraulic hydraulic connections environments, and the 90-degree elbow geometry lets you make that direction change without needing an extra adapter in line.
Question by: Judy A on Nov 21, 2025, 6:59 PM
got a tight spot on a line, is this a 90 that goes from JIC flare to pipe thread?
Answer by: Customer Support on Nov 23, 2025, 7:50 AM
For a right angle turn, it mates a male JIC SAE 37 degree flare on one end to a male NPTF pipe thread on the other. It is a Brennan Series 2501 forged brass elbow adapter.
Question by: Ronnie W on May 22, 2025, 7:53 AM
Will this fitting hold up okay in a hydraulic system using regular hydraulic oil?
Answer by: Customer Support on May 23, 2025, 10:20 AM
Forged brass offers good resistance to corrosion in typical hydraulic applications, so it should be compatible with standard hydraulic oils.
