08MJ-08MP 90 ELB STNLS

Description & Features

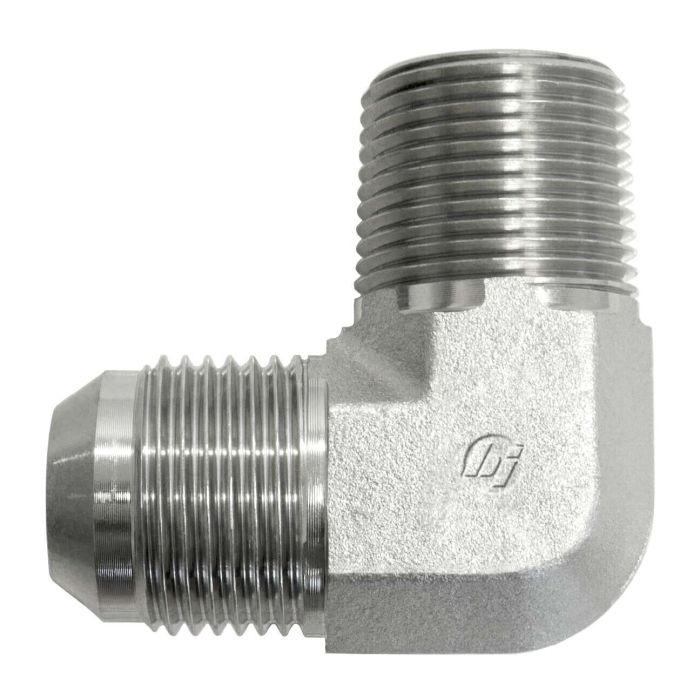

The 08MJ-08MP 90 ELB STNLS is a precision-engineered component manufactured by Brennan Industries Inc. designed to meet demanding industrial specifications. Crafted from forged stainless steel it offers robust performance and durability under high-pressure conditions with a maximum dynamic pressure rating of 6 000 psi.

This elbow fitting has a centerline length of 1.330 mm and an overall length of 1.470 mm providing a compact and reliable solution for complex fluid systems. The male JIC SAE 37-degree flare and male NPTF threads conform to SAE J514 and SAE J476 standards respectively ensuring compatibility and secure connections.

The Brennan Series 2501-FG includes this component which fits within a cubic inch space of 2.95. The component's precise thread sizes B1 at 3/4-16 and B2 at 1/2-14 are engineered for optimal fit and performance in high-precision applications.

Supplier Part Number: 2501-08-08-SS

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-08-08-SS	Product Weight 0.00 lbs

Product Questions & Answers (3)

Question by: Dean M on Oct 11, 2025, 10:46 AM

Will this elbow fitting handle a hydraulic system pushing 5500 psi without failin?

Answer by: Customer Support on Oct 13, 2025, 7:28 AM

This fitting is rated for a maximum dynamic pressure of 6,000 psi, so it should handle your 5500 psi system.

Question by: Troy G on Mar 12, 2026, 9:50 PM

trying to swap out an elbow i’ve got now. what threads are on each end of this one?

Answer by: Customer Support on Mar 14, 2026, 6:28 AM

On the B1 end you get a male JIC SAE 37 degree flare with a 3/4-16 thread, built to SAE J514. The B2 end is male NPTF with a 1/2-14 thread, built to SAE J476.

Question by: Bonnie F on Feb 1, 2026, 2:47 PM

what's the pressure rating on this elbow fitting, and is it gonna hold up in a hydraulic line running pretty hard most of the day?

Answer by: Customer Support on Feb 3, 2026, 12:43 PM

Rated at 6,000 psi dynamic pressure, so it can handle a heavily loaded hydraulic circuit without issue. Forged stainless steel construction backs that rating up with solid resistance to wear and stress over time. For most industrial hydraulic lines running continuous duty, that rating puts it well within range.
