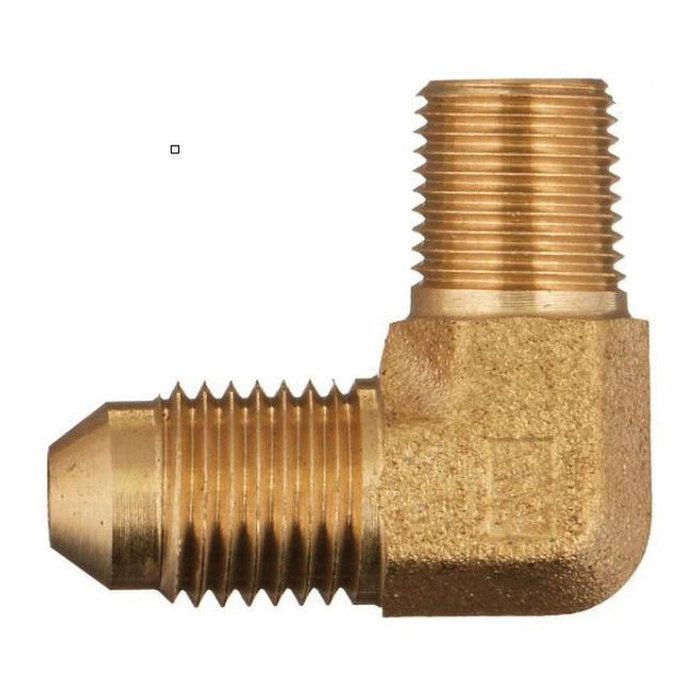

08MJ-12MP 90° ELBOW FORGED BRASS

Ask A Question

Description & Features

This forged brass 90° elbow features a 3/4-16 Male JIC SAE 37 Degree Flare thread (B1) according to SAE J514 specification, and a 3/4-14 Male NPTF thread (B2) per SAE J476.

With a centerline length of 1.420 mm and an overall length of 1.590 mm, this 08MJ-12MP 90° ELBOW FORGED BRASS provides a durable and reliable connection.

SKU: 2501-08-12-B

Supplier Part Number (MPN): 2501-08-12-B

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.395 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.59 in L
Finish
Natural
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.59 in
Material
Brass
Material Construction
UNS CA377 Brass
Series
2501-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
3/4-16 x 3/4-14

Product Questions & Answers (1)

Question by: Roger W on Apr 6, 2026, 3:57 PM
Is this elbow made from brass all the way through, or is it just plated?
Answer by: Customer Support on Apr 8, 2026, 10:31 AM
Forged brass is the raw material type for this 90-degree elbow, so it's solid brass.
