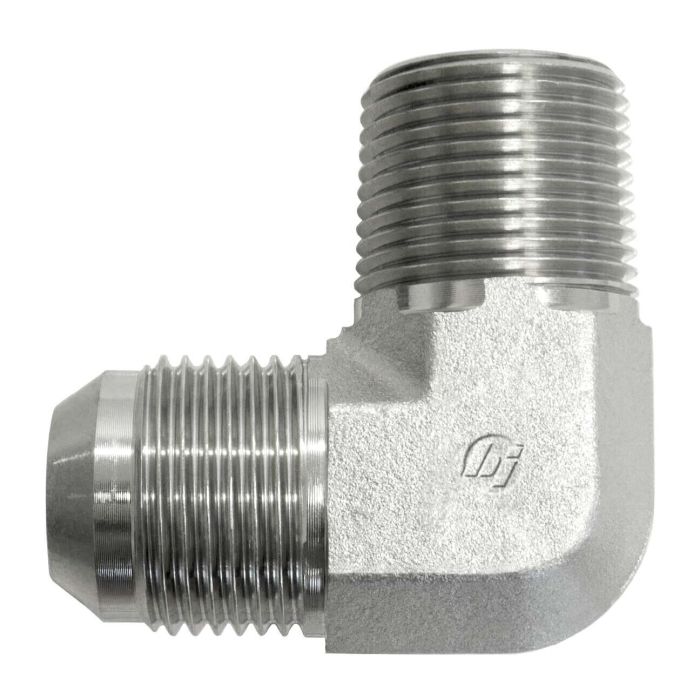

main product photo

90 DEG MALE JIC 1 IN X MALE NPT 3/4 IN

Ask A Question

Description & Features

Constructed from forged steel, this 90-degree elbow fitting ensures durability and strength in hydraulic applications. Designed with a Male JIC SAE 37-degree flare on one end and a Male NPTF connection on the other, it offers reliable compatibility with 1-5/16-12 and 3/4-14 thread sizes, respectively. The fitting adheres to SAE J514 and SAE J476 standards, making it suitable for high-pressure environments up to 4,000 PSI.

The 90 DEG MALE JIC 1 IN X MALE NPT 3/4 IN elbow is perfect for connecting components within hydraulic systems, providing a secure and leak-resistant connection. Its compact size, with a centerline length of 1.810 mm and an overall length of 1.780 mm, allows for easy integration into tight spaces. The robust construction and precise threading ensure a long-lasting, dependable solution for industrial needs.

SKU: 2501-16-12-FG

Supplier Part Number (MPN): 2501-16-12-FG

Alternate Part Numbers: 2501-16-12, A2024-12-16S

Specifications

Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
7.881 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.78 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l Dimensions
1.78 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.844 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
3/4-14, 1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Cody B on Nov 3, 2025, 5:20 PM
Is this elbow fitting somethin' I could use in a tight spot?
Answer by: Customer Support on Nov 5, 2025, 10:30 AM
This 90-degree elbow is designed with a compact size, featuring a centerline length of 1.810 mm and an overall length of 1.780 mm, which should allow for easier integration into confined spaces.
