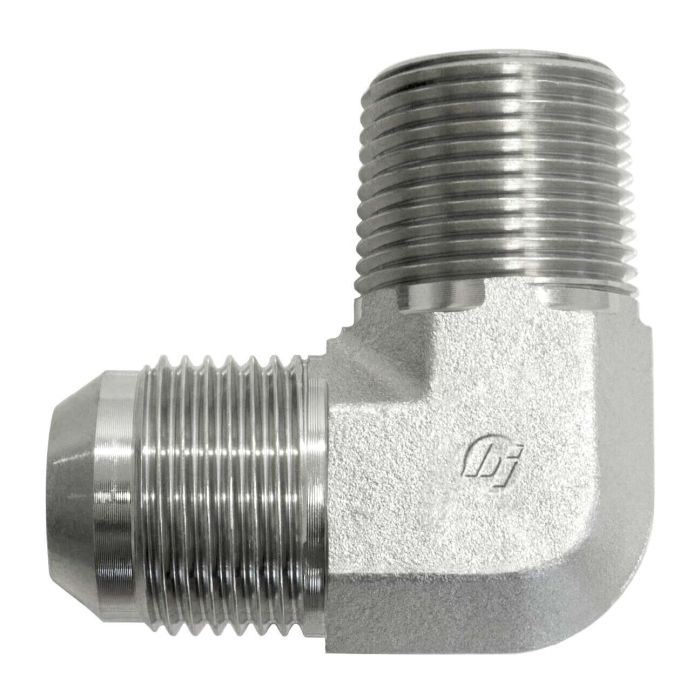

20MJ-24MP 90 DEG ELBOW

Ask A Question

Description & Features

The 20MJ-24MP 90 DEG ELBOW from Brennan Industries Inc is an expertly engineered forged steel component designed for industrial applications requiring robust and reliable connections.

The elbow is crafted from high-quality forged steel ensuring durability and strength under high-pressure conditions. With a maximum dynamic pressure rating of 3 000 psi this component is built to withstand demanding environments.

Featuring male JIC SAE 37-degree flare and male NPTF threads it provides compatibility with a wide range of SAE-standard fittings. The precision-engineered threads meeting SAE J514 and SAE J476 specifications ensure secure and leak-free connections.

The elbows compact design with an overall length of 2.640 mm and a centerline length of 2.200 mm allows for easy installation in confined spaces. It is ideally suited for applications where intricate piping arrangements are required.

This 90-degree elbows optimal design incorporating threads B1 with a drill size of 1.078 mm and threads B2 with a drill size of 1.500 mm contributes to efficient and dependable fluid transfer.

Supplier Part Number: 2501-20-24-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
21.046 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
2.64 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l Dimensions
2.64 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
2501-FG Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.078 in
Thread B2 Drill Dimensions
1.5 in
Thread Size
1-5/8-12 x 1-1/2-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
#3 MJIC X #2 MP 90*

2501-03-02-FG

3/16 in

1/8 in

3/8-24 x 1/8-27

04MJ-01MP 90 DEGREE ELBOW FORGED

2501-04-01-FG

1/4 in

7/16-20 x 1/16-27

04MJ-02MP 90 ELB

2501-04-02-FG

1/4 in

1/8 in

1/8-27, 7/16-20

04MJ-04MP 90 ELB

2501-04-04-FG

1/4 in

1/4 in

7/16-20, 1/4-18

04MJ-06MP 90 ELB FORG

2501-04-06-FG

1/4 in

3/8 in

7/16-20 x 3/8-18

04MJ-08MP 90 ELB FORG

2501-04-08-FG

1/4 in

1/2 in

7/16-20, 1/2-14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

1/4 in

3/4 in

7/16-20 x 3/4-14

#5 MJIC X #2 MP 90*

2501-05-02-FG

5/16 in

1/8 in

1/2-20 x 1/8-27

#5 MJIC X #4 MP 90*

2501-05-04-FG

5/16 in

1/4 in

1/2-20 x 1/4-18

05MJ-06MP 90 DEG ELBOW FORGED

2501-05-06-FG

5/16 in

3/8 in

1/2-20 x 3/8-18

#5 MJIC X #8 MP 90*

2501-05-08-FG

5/16 in

1/2 in

1/2-20 x 1/2-14

#6 MJIC X #2 MP 90*

2501-06-02-FG

3/8 in

1/8 in

9/16-18 x 1/8-27

#6 MJIC X #4 MP 90*

2501-06-04-FG

3/8 in

1/4 in

1/4-18 x 9/16-18

06MJ-06MP 90 ELB FORG

2501-06-06-FG

3/8 in

3/8 in

3/8-18, 9/16-18

06MJ-08MP 90 ELB

2501-06-08

3/8 in

1/2 in

1/2-14 x 9/16-18

06MJ-12MP 90 ELB

2501-06-12-FG

3/8 in

3/4 in

9/16-18, 3/4-14

08MJ-04MP 90 ELB FORG

2501-08-04-FG

1/2 in

1/4 in

3/4-16, 1/4-18

08MJ-06MP 90 ELB

2501-08-06

1/2 in

3/8 in

3/4-16 x 3/8-18

08MJ-12MP 90 ELB

2501-08-12

1/2 in

3/4 in

3/4-16 x 3/4-14

2501-08-16-FG

2501-08-16-FG

1/2 in

1 in

3/4-16 x 1-11-1/2

10MJ-08MP 90 ELB FORG

2501-10-08-FG

5/8 in

1/2 in

1/2-14 x 7/8-14

10MJ-12MP 90 ELB FORG

2501-10-12-FG

5/8 in

3/4 in

3/4-14, 7/8-14

#10 MJ X #16 MP 90*

2501-10-16-FG

5/8 in

1 in

7/8-14 x 1-11-1/2

#12 MJIC X #6 MP 90*

2501-12-06-FG

3/4 in

3/8 in

1-1/16-12 x 3/8-18

12MJ-08MP 90 DEG ELBOW

2501-12-08-FG

3/4 in

1/2 in

1-1/16-12 x 1/2-14

12MJ-12MP 90 ELB

2501-12-12-FG

3/4 in

3/4 in

1-1/16-12 x 3/4-14

12MJ-16MP 90 ELB FORG

2501-12-16-FG

3/4 in

1 in

1-1/16-12 x 1-11-1/2

14MJ-12MP 90 ELB

2501-14-12

7/8 in

3/4 in

1-3/16-12 x 3/4-14

90 DEG MALE JIC 1 IN X MALE NPT 3/4 IN

2501-16-12-FG

1 in

3/4 in

3/4-14, 1-5/16-12

16MJ-20MP 90 ELB FORG

2501-16-20-FG

1 in

1-1/4 in

1-5/16-12 x 1-1/4-11-1/2

20MJ-16MP 90 ELB FORG

2501-20-16-FG

1-1/4 in

1 in

1-5/8-12 x 1-11-1/2

20MJ-20MP 90 ELB

2501-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2, 1-5/8-12

24MJ-16MP 90 ELB FORG

2501-24-16-FG

1-1/2 in

1 in

1-7/8-12, 1-11-1/2

#24 MJIC X #20 MP 90*

2501-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-7/8-12

024 MJIC X 024 MP 90

2501-24-24

1-1/2 in

1-1/2 in

1-7/8-12, 1-1/2-11-1/2

32MJ-32MP 90 DEG ELBOW FORGED

2501-32-32-FG

2 in

2 in

2-1/2-12 x 2-11-1/2

40MJ-40MP 90 ELB FORG

2501-40-40-FG

2-1/2 in

2-1/2 in

3-12 x 2-1/2-8

Product Questions & Answers (3)

Question by: Johnny A on Dec 17, 2025, 11:19 AM
Got a 1-5/8-12 JIC line and a 1-1/2 NPTF port that need to meet at a 90, does this fitting bridge both of those in one piece?
Answer by: Customer Support on Dec 18, 2025, 11:53 AM
That's what it does. One end is a male JIC SAE 37-degree flare at 1-5/8-12, and the other is a male NPTF at 1-1/2-11-1/2. Both threads are on the same forged steel elbow, so you're making that 90-degree turn and the thread transition all in one shot. No adapter stacking needed.
Question by: Curt H on Apr 5, 2026, 8:34 AM
trying to swap an elbow out on a line, what are the thread types on this 20MJ-24MP?
Answer by: Customer Support on Apr 7, 2026, 6:08 AM
On the B1 side you get a male JIC SAE 37 degree flare thread, size 1-5/8-12 (SAE J514). The B2 side is a male NPTF pipe thread, size 1-1/2-11-1/2 (SAE J476).
Question by: Brett M on Jan 2, 2026, 6:47 AM
Is this elbow okay for hooking up some hydraulic lines in a tight spot?
Answer by: Customer Support on Jan 3, 2026, 12:55 PM
Yes, this 90-degree elbow features a compact design with an overall length of 2.640 mm and a centerline length of 2.200 mm, making it suitable for installations in confined spaces where intricate hydraulic lines arrangements are needed.
