40MJ-40MP 90 ELB FORG

Description & Features

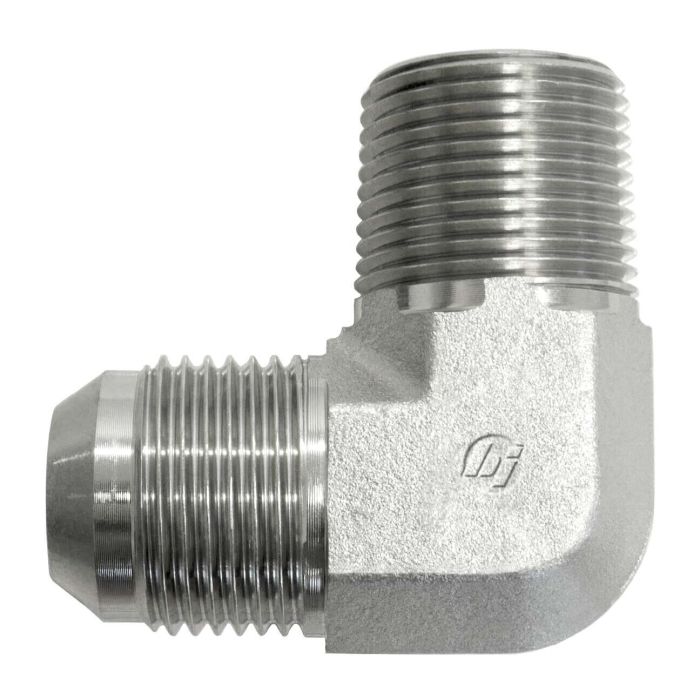

Forged from steel and configured as a 90-degree elbow, the 40MJ-40MP 90 ELB Forg connects a Male JIC SAE 37-degree flare (SAE J514) on one end to a Male NPTF thread (SAE J476) on the other. Thread sizes are 3-12 on the JIC end and 2-1/2-8 on the NPTF end, making this fitting well suited for hydraulic circuits that transition between JIC and NPTF threaded connections at a right angle.

Part of the Brennan Industries 2501-FG series, this fitting is forged steel construction throughout. A centerline length of 3.250 mm and overall length of 3.950 mm reflect its compact form factor for space-conscious installations. California residents should note that this product is subject to Proposition 65 requirements.

SKU: 2501-40-40-FG

Supplier Part Number (MPN): 2501-40-40-FG

Alternate Part Numbers: 2501-40-40

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2501-40-40-FG	Product Weight 7.70 lbs

Product Questions & Answers (1)

Question by: Wayne M on Dec 7, 2025, 7:21 PM

So this thing's a 90-degree elbow, right? Just want to make sure it'll actually fit in the space I got. What's the overall length on it?

Answer by: Customer Support on Dec 9, 2025, 9:04 AM

Overall length is 3.950 mm, and the centerline length is 3.250 mm. It's made to be pretty compact.
