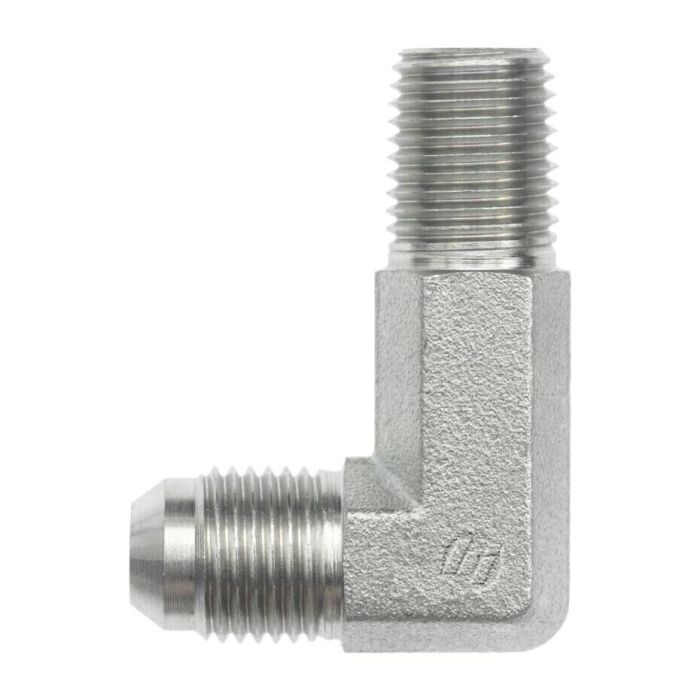

main product photo

06MJ-04MP 90 DEG Elbow LONG

Ask A Question

Description & Features

This 90-degree long elbow fitting features a 9/16-18 male JIC 37-degree flare thread and a 1/4-18 male NPTF thread. Constructed from forged steel, this 06MJ-04MP 90 DEG Elbow LONG ensures durability and reliable performance in demanding hydraulic applications.

With a maximum dynamic pressure of 6,000 PSI and a centerline length of 1.060 mm, this fitting is part of the 2501-L-FG series from Brennan Industries. It measures 1.580 mm in overall length and occupies a cubic inch space of 1.403.

SKU: 2501-L-06-04-FG

Supplier Part Number (MPN): 2501-L-06-04-FG

Alternate Part Numbers: 2501-L-06-04, A202411-4-6S

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.403 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.58 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.58 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2501-L-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.281 in
Thread Size
1/4-18 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Connie H on Jan 17, 2026, 10:35 AM
I need a 90-degree elbow for a hydraulic setup. What kind of pressure can this fitting handle safely?
Answer by: Customer Support on Jan 18, 2026, 7:29 PM
This 90-degree elbow is rated for a maximum dynamic pressure of 6,000 PSI, making it suitable for demanding hydraulic applications.
