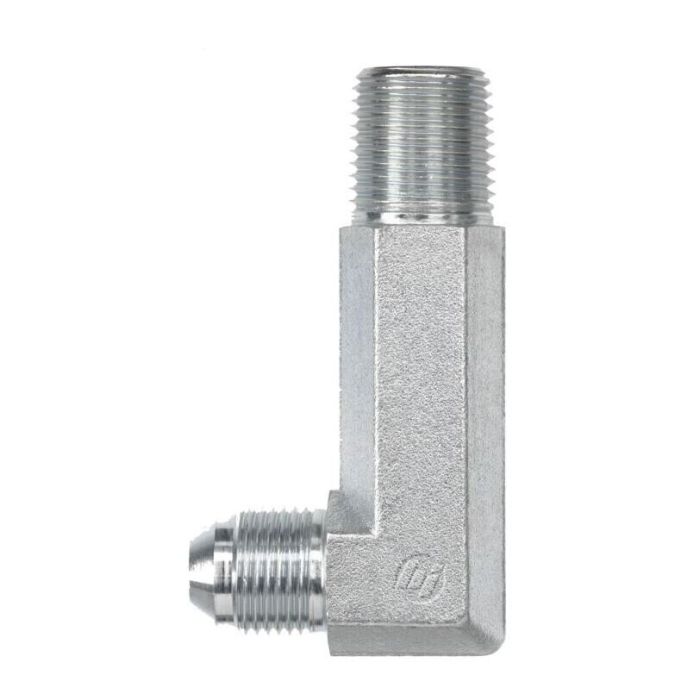

04MJ-04MP 90DEG ELBW X-LNG (2.07 L DIM)

Constructed from forged steel, this 90-degree extra-long elbow fitting connects a 7/16-20 Male JIC SAE 37-degree flare (Thread B1, per SAE J514) to a 1/4-18 Male NPTF thread (Thread B2, per SAE J476), making it well suited for hydraulic lines where direction changes and mixed thread standards must be accommodated within a single component. The overall length of 2.070 inches and centerline length of 1.050 inches reflect the extended geometry referenced in the 04MJ-04MP 90DEG ELBW X-LNG (2.07 L DIM) designation.

Rated to 6,000 PSI maximum dynamic pressure, the fitting is built for demanding hydraulic circuit applications. Forged steel construction provides the structural integrity expected in high-pressure line connections. The Brennan Industries 2501-LL-FG series fitting meets California Proposition 65 labeling requirements.

SKU: 2501-LL-04-04-FG

Supplier Part Number (MPN): 2501-LL-04-04-FG
