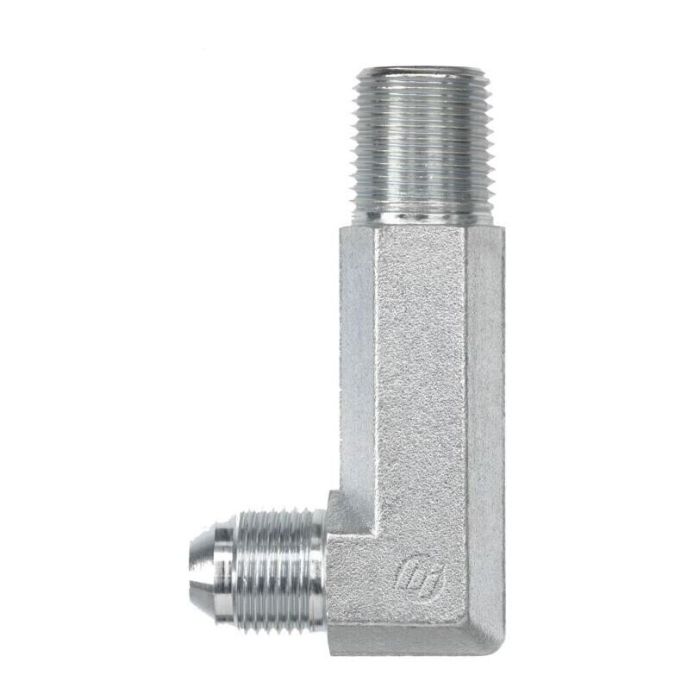

main product photo

06MJ-08MP 90 DEG EXTRA-LONG ELBOW

Ask A Question

Description & Features

This forged steel 90 Degree Extra-Long Elbow features a 9/16-18 Male JIC SAE 37 Degree Flare thread on one end and a 1/2-14 Male NPTF thread on the other. With a centerline length of 1.220 mm and an overall length of 2.870 mm, this 06MJ-08MP 90 DEG EXTRA-LONG ELBOW is suitable for applications requiring a robust connection.

Designed to withstand dynamic pressures up to 6,000 psi, this elbow ensures reliable performance in demanding hydraulic systems. Its forged steel construction provides enhanced durability and resistance to mechanical stress.

SKU: 2501-LL-06-08-FG

Supplier Part Number (MPN): 2501-LL-06-08-FG

Alternate Part Numbers: 2501-LL-06-08, A202413-8-6S, BR-2501-LL-0608-, BR-2501-LL-0608-FG

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.797 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
2.87 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
2.87 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2501-LL-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Curt E on Jun 30, 2025, 8:41 AM
Is this elbow gonna fit right if I'm usin' JIC on one side and NPTF on the other? Just wanna make sure 'fore I order.
Answer by: Customer Support on Jul 1, 2025, 10:57 AM
This elbow is designed to connect a 9/16-18 Male JIC SAE 37 Degree Flare thread to a 1/2-14 Male NPTF thread. Make sure those are the sizes you need for your setup.
