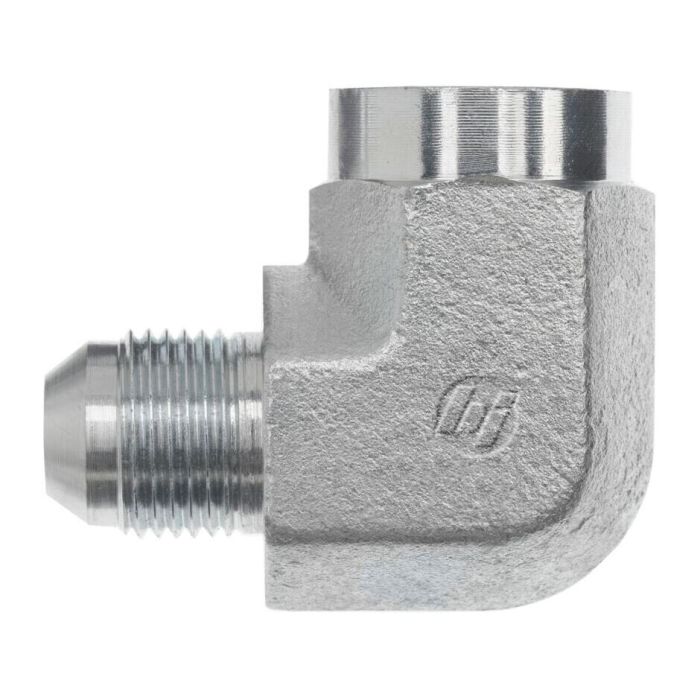

main product photo

04MJ-04FP 90° ELBOW STNLS

Ask A Question

Description & Features

Forged from stainless steel, the 04MJ-04FP 90° Elbow Stnls is a compact 90-degree hydraulic fitting rated for dynamic pressures up to 6,000 PSI. It connects a 7/16-20 Male JIC SAE 37-degree flare (SAE J514) to a 1/4-18 Female NPTF thread (SAE J476), making it a reliable choice for right-angle transitions between JIC and NPTF fluid line connections in demanding hydraulic systems.

Built to Brennan Industries' 2502-FG series standards, the forged stainless steel construction provides corrosion resistance where carbon steel fittings would be unsuitable. California residents should note this product is subject to Proposition 65 warnings.

SKU: 2502-04-04-SS

Supplier Part Number (MPN): 2502-04-04-SS

Alternate Part Numbers: AJ4-4FE

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.501 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
0.88 in L
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
0.88 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
2502-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Vince P on Aug 17, 2025, 7:11 AM
Will this fitting hold up if I'm pushing close to that 6000 PSI rating?
Answer by: Customer Support on Aug 18, 2025, 5:08 PM
Rated for dynamic pressures up to 6,000 PSI, this 90-degree elbow should handle those conditions when installed properly.
