#10 MJIC X #8 FP 90*

Description & Features

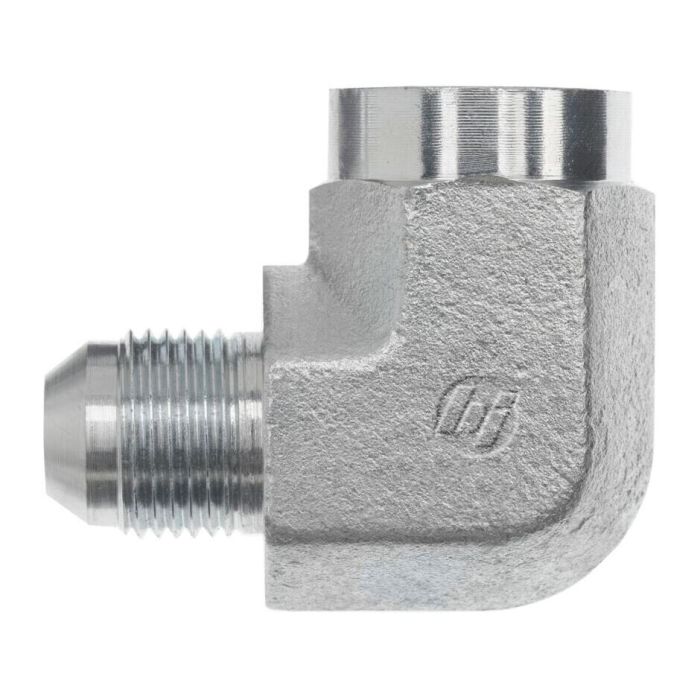

This forged steel 90-degree elbow features a #10 MJIC (Male JIC SAE 37 Degree Flare) connection on one end and a #8 FP (Female NPTF) connection on the other. The #10 MJIC side has a 7/8-14 thread size conforming to SAE J514 specifications, while the #8 FP side has a 1/2-14 thread size conforming to SAE J476 specifications.

With a centerline length of 1.640 mm and an overall length of 1.230 mm, this fitting is designed for a maximum dynamic pressure of 5,000 PSI. The #10 MJIC X #8 FP 90* elbow is part of the 2502-FG series.

SKU: 2502-10-08-FG

Supplier Part Number (MPN): 2502-10-08-FG

Alternate Part Numbers: 2502-10-08, A2025-8-10S

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.06 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
2502-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.484 in
Thread B2 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 7/8-14
