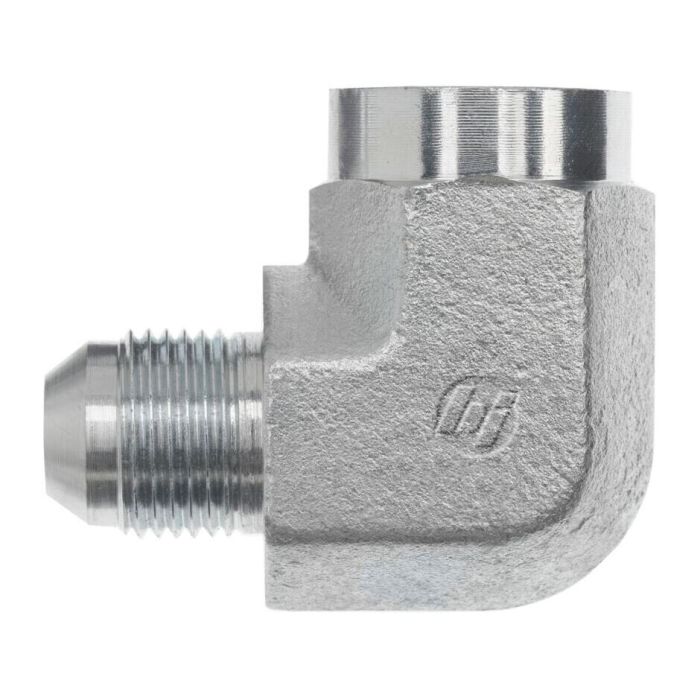

main product photo

#10 MJIC X #12 FP 90*

Ask A Question

Description & Features

Forged from steel and rated to 4,000 PSI dynamic pressure, this 90-degree elbow connects a #10 Male JIC SAE 37-degree flare (7/8-14 thread, per SAE J514) to a #12 Female NPTF port (3/4-14 thread, per SAE J476). The #10 MJIC x #12 FP 90° fitting is part of Brennan's 2502-Fg forged series, making it well suited for hydraulic lines where a right-angle transition between JIC and NPTF connections is required.

Forged steel construction provides reliable mechanical strength for demanding hydraulic service. California residents should note this product is subject to a Proposition 65 warning.

SKU: 2502-10-12-FG

Supplier Part Number (MPN): 2502-10-12-FG

Alternate Part Numbers: 2025-12-10S, 2502-10-12, C1DW27

Specifications

Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
6.417 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.36 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l Dimensions
1.36 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
2502-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.484 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
3/4-14, 7/8-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Larry T on Apr 1, 2026, 9:25 AM
Reckon this fitting would hold up okay in a hydraulic system running around 3500 PSI?
Answer by: Customer Support on Apr 3, 2026, 6:58 AM
Forged from steel, this 90-degree elbow is rated to a dynamic pressure of 4,000 PSI, which should provide an adequate safety margin for your 3500 PSI system.
