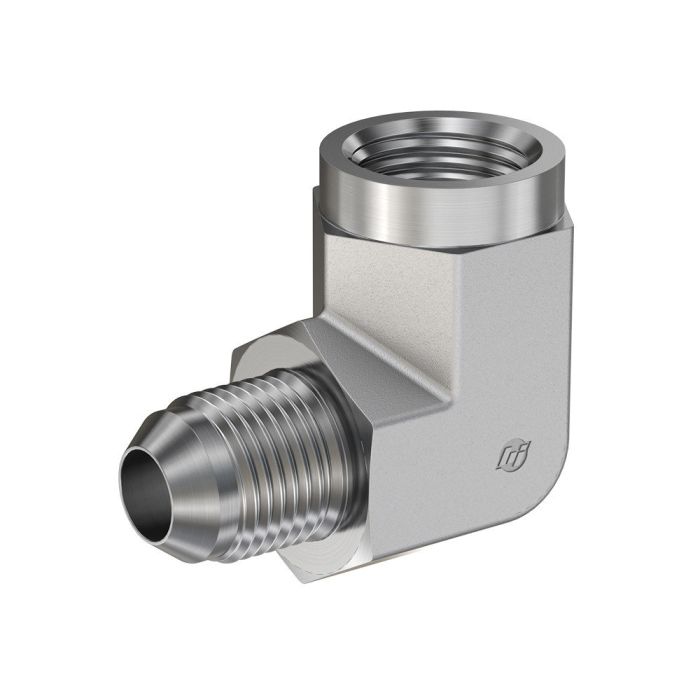

main product photo

12MJ-16FP 90° Elbow Stnls

Ask A Question

Description & Features

This 90° elbow, part number 12MJ-16FP, features a male JIC 37-degree flare on one end and a female NPTF threaded connection on the other.

Constructed from forged stainless steel, this elbow is part of the 2502-FG series and conforms to SAE J514 and SAE J476 standards. It withstands dynamic pressures up to 3,000 PSI.

SKU: 2502-12-16-SS

Supplier Part Number (MPN): 2502-12-16-SS

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J514, SAE J476
Dimensions
1.62 in L
Fitting Type
90 deg Elbow
Hex Size
1-5/8
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
2502-FG Series
Thread B1 Drill Dimensions
0.609 in
Thread B2 Drill Dimensions
0.938 in
Thread Size
1-1/16-12 x 1-11-1/2

Product Questions & Answers (1)

Question by: Neal M on Jul 23, 2025, 6:38 AM
Hey, will this fitting hold up if I'm pushing close to that 3,000 PSI?
Answer by: Customer Support on Jul 25, 2025, 6:02 AM
Forged stainless steel construction means it can handle dynamic pressures right up to 3,000 PSI, so you should be good to go.
