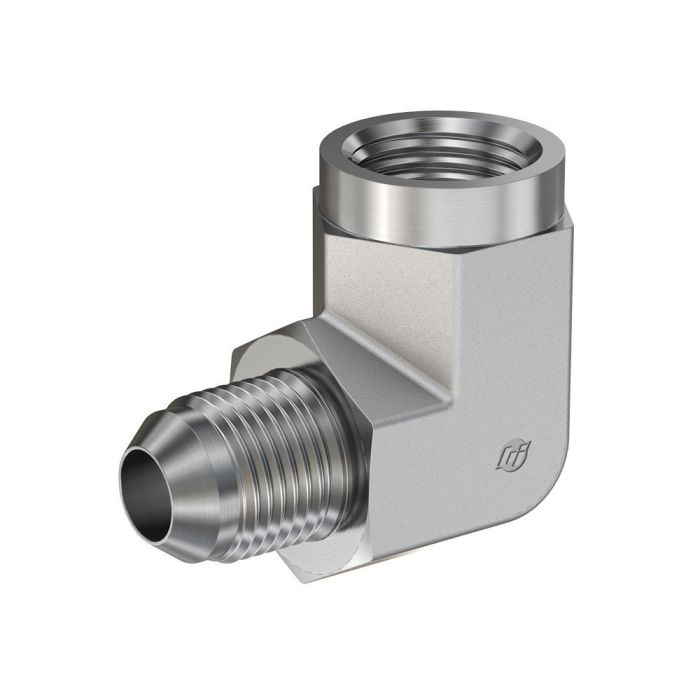

main product photo

ADAPTER

Ask A Question

Description & Features

The Adapter from Brennan Industries Inc is designed for specialized hydraulic and fluid systems requiring a reliable connection. Manufactured with precision it ensures durability and efficient performance under demanding conditions.

This robust component features a #16 MJ to #12 FP (Rigid) 90-degree configuration making it ideal for applications where space is limited and a tight connection is crucial. The exacting standards of Brennan Industries Inc ensure a secure fit and dependability.

Key attributes include a non-adjustable end indicating a fixed and secure installation. The Adapter does not require additional equipment or accessories such as blades mandrels or thread sealant simplifying the installation process.

Its design excludes elements like a check valve remote control or switch connector making it a dedicated component for specific industrial applications. The absence of color coding or electrical components underscores its focus on mechanical fitting purposes.

MPN: 2502-16-12-FG

Supplier Part Number: 2502-16-12-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J514, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
2502-FG Series
Thread Size
3/4-14, 1-5/16-12

Product Questions & Answers (1)

Question by: Hank H on May 7, 2025, 10:45 AM
does this adapter work as a fixed connection or can the angle be adjusted after installation?
Answer by: Customer Support on May 9, 2025, 8:14 AM
Fixed all the way. The non-adjustable end means once it's installed, the orientation is set. That 90-degree angle between the #16 MJ and #12 FP ports is locked in, so you'll want to make sure your line routing is planned out before you torque it down.
