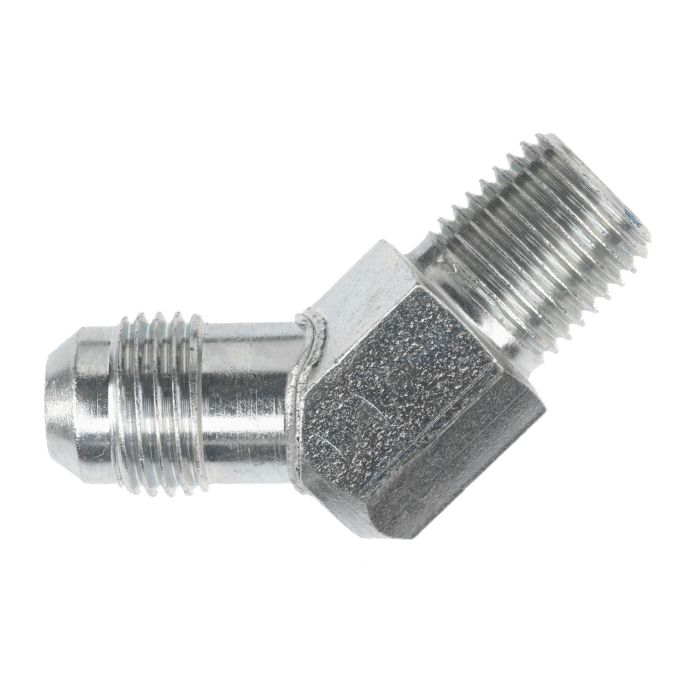

04MJ-04MP 45° ELBOW BRASS

Description & Features

Forged from brass, the 04MJ-04MP 45° Elbow Brass connects a 7/16-20 Male JIC SAE 37° Flare (SAE J514) to a 1/4-18 Male NPTF (SAE J476), making it well suited for hydraulic and fluid system assemblies where a directional change between JIC and pipe thread connections is required. The 45° angle allows for compact routing in tighter installations where a straight or 90° fitting would not be practical.

Manufactured by Brennan Industries to the Series 2503 standard, this fitting is forged brass construction, a material commonly chosen for moderate-pressure hydraulic and fluid transfer applications. California residents should note this product is subject to a Proposition 65 warning.

SKU: 2503-04-04-B

Supplier Part Number (MPN): 2503-04-04-B

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-04-04-B	Product Weight 0.08 lbs

Product Questions & Answers (1)

Question by: Earl G on Nov 9, 2025, 8:40 AM

So this is a 45 degree elbow, but I want to make sure it'll fit my setup... the connections are 7/16-20 male JIC and 1/4-18 male NPTF, right? Just wanna be double-dog sure.

Answer by: Customer Support on Nov 10, 2025, 1:25 PM

That's correct. It has a 7/16-20 Male JIC SAE 37° Flare on one end and a 1/4-18 Male NPTF on the other, so it's ready for connections between those thread types.
