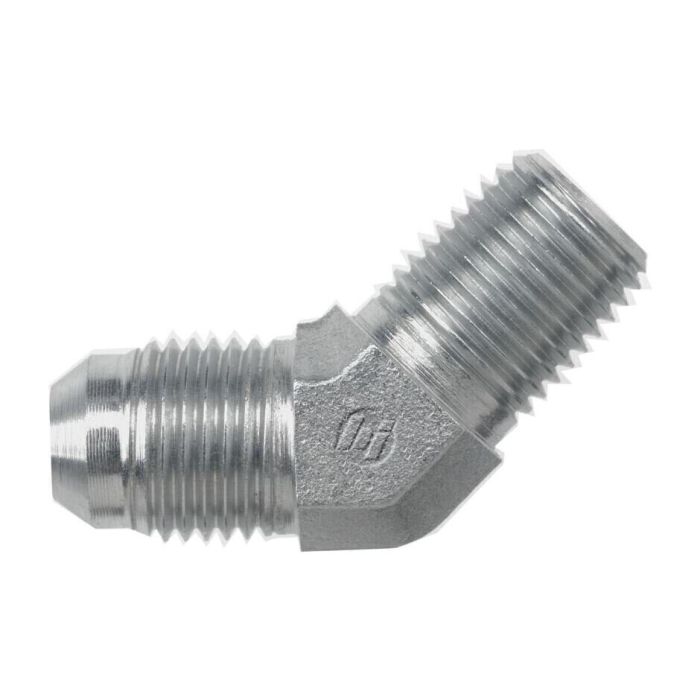

04MJ-06MP 45 ELB

Description & Features

Forged from steel and rated to 6,000 PSI maximum dynamic pressure, the 04MJ-06MP 45 ELB is a 45-degree elbow adapter designed for hydraulic line connections requiring a directional change between two different thread types. One end features a 7/16-20 Male JIC SAE 37-degree flare connection conforming to SAE J514; the other end transitions to a 3/8-18 Male NPTF thread per SAE J476. This cross-thread configuration makes the fitting well suited for hydraulic assemblies where a JIC line must connect to an NPTF port at an angle.

Manufactured by Brennan Industries as part of their 2503-Fg series, the forged steel construction provides reliable strength and durability in demanding hydraulic applications. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 2503-04-06-FG

Supplier Part Number (MPN): 2503-04-06-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-04-06-FG	Product Weight 0.11 lbs

Product Questions & Answers (1)

Question by: Travis R on Jul 18, 2025, 4:00 PM

Will this fitting work with standard JIC and NPT threads or is it some kinda proprietary deal?

Answer by: Customer Support on Jul 20, 2025, 6:59 AM

This elbow uses industry-standard connections. It has a 7/16-20 Male JIC SAE 37-degree flare on one side and a 3/8-18 Male NPTF thread on the other, both made to SAE specifications.
