08MJ-06MP 45 ELB FORG

Description & Features

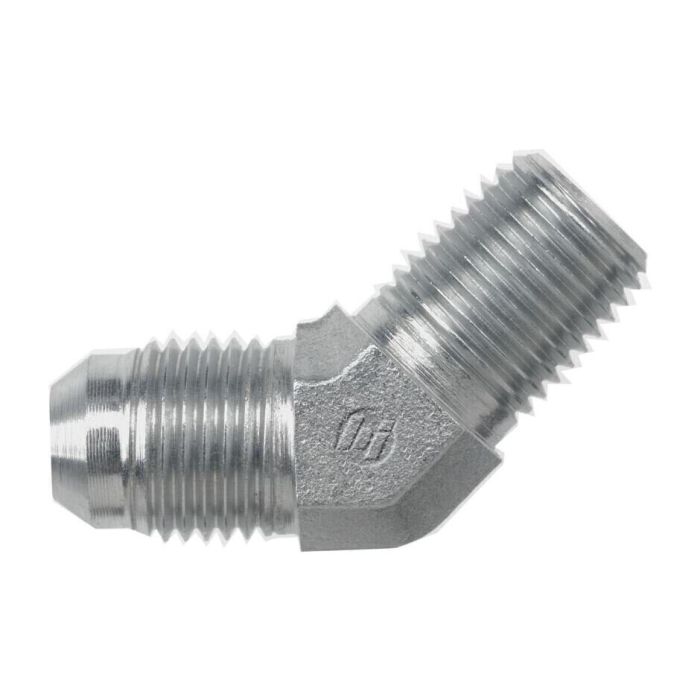

The 08MJ-06MP 45 ELB FORG is engineered by Brennan Industries Inc. combining durability with exceptional performance standards. Fabricated from high-quality forged steel this elbow is designed to support a maximum dynamic pressure of 6 000 PSI ensuring robust and long-lasting functionality.

Featuring a 45-degree elbow configuration it is crafted for optimized fluid transfer. The centerline length measures 0.980 mm and the overall length is 0.950 mm making it an ideal fit for industrial applications.

The product is equipped with two types of threads: Male JIC SAE 37 Degree Flare and Male NPTF adhering to SAE J514 and SAE J476 specifications respectively. The thread sizes are 3/4-16 and 3/8-18 with drill dimensions of 0.391 mm and 0.406 mm.

Both the precise engineering and the use of resilient raw materials underscore its reliability.

MPN: 2503-08-06-FG

Supplier Part Number: 2503-08-06-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-08-06-FG	Product Weight 0.14 lbs

Product Questions & Answers (3)

Question by: Danny P on Aug 8, 2025, 12:30 PM

got a JIC line and need to kick it over 45 degrees into a pipe port. what threads are on each end of this elbow?

Answer by: Customer Support on Aug 9, 2025, 6:01 PM

On the JIC side, it uses a Male JIC SAE 37 degree flare thread in 3/4-16 per SAE J514. The other end is a Male NPTF pipe thread in 3/8-18 per SAE J476.

Question by: Eddie P on Dec 11, 2025, 11:02 AM

Is this elbow made to hold up in an oily environment, or do I need to be extra careful with it?

Answer by: Customer Support on Dec 12, 2025, 3:49 PM

Forged steel gives this elbow good durability in industrial settings. It's rated to handle a maximum dynamic pressure of 6000 PSI.

Question by: Brent M on Jul 21, 2025, 5:55 PM

Got a line running 3/8 NPT male on one end and need to tie into a JIC 37-degree flare fitting on the other side with a 45-degree angle change. This elbow gonna work for that?

Answer by: Customer Support on Jul 22, 2025, 6:45 PM

That setup is exactly what this fitting handles. One end is a 3/8-18 Male NPTF thread and the other is a 3/4-16 Male JIC SAE 37 Degree Flare, so it bridges those two thread types while giving you that 45-degree direction change in the line. Both threads meet SAE spec, J476 on the NPTF side and J514 on the JIC side, so you're working with standardized connections on both ends.
