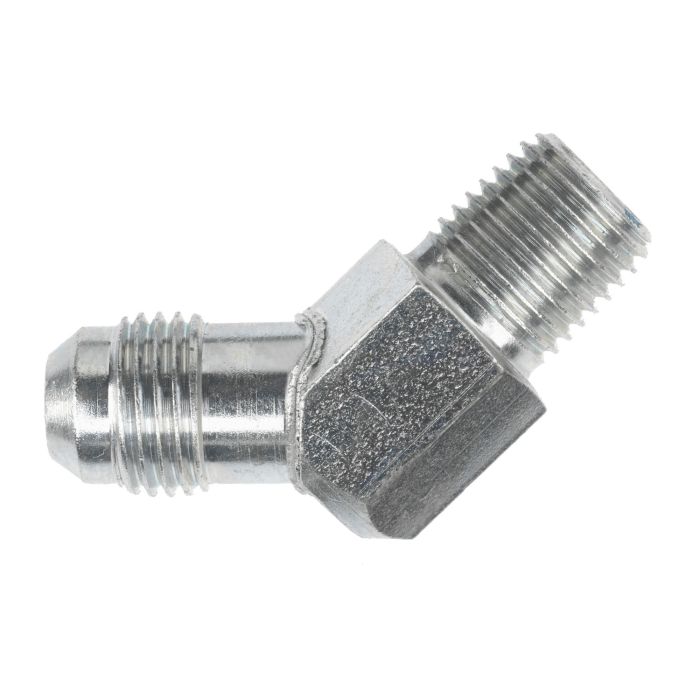

08MJ-08MP 45° ELBOW BRASS

Description & Features

Crafted from forged brass, the 08MJ-08MP 45° Elbow Brass offers durability and reliability for industrial hydraulic systems. This precision-engineered component features a Male JIC SAE 37-degree flare thread on one end and a Male NPTF thread on the other, ensuring secure and efficient connections. The B1 thread measures 3/4-16, compliant with SAE J514 standards, while the B2 thread is 1/2-14, meeting SAE J476 specifications.

The compact design, with an overall length of 1.170 mm and a centerline length of 0.990 mm, facilitates integration into space-constrained environments. Ideal for applications requiring angled connections, this elbow optimizes fluid transfer while maintaining system integrity. With a cubic inch space of 3.038, it is well-suited for various industrial setups.

SKU: 2503-08-08-B

Supplier Part Number (MPN): 2503-08-08-B

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-08-08-B	Product Weight 0.21 lbs

Product Questions & Answers (1)

Question by: Roy F on Jul 6, 2025, 10:01 AM

What size threads does this elbow have on each end?

Answer by: Customer Support on Jul 7, 2025, 11:35 AM

This elbow features a 3/4-16 Male JIC SAE 37-degree flare thread on one end and a 1/2-14 Male NPTF thread on the other, according to SAE standards.
