08MJ-12MP 45 ELB

Ask A Question

Description & Features

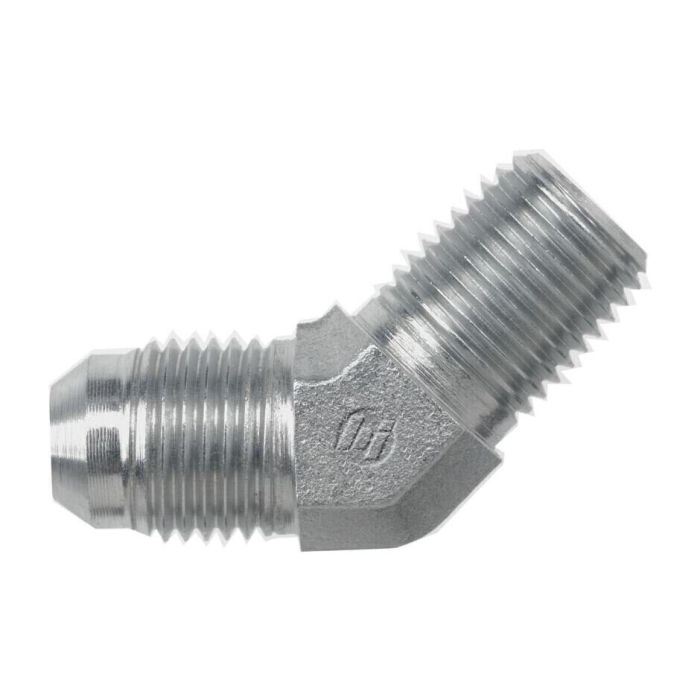

This forged steel 45-degree elbow, designated 08MJ-12MP 45 ELB, features a male JIC SAE 37-degree flare on one end and a male NPTF thread on the other. The JIC side has a 3/4-16 thread size according to SAE J514 specifications, while the NPTF side has a 3/4-14 thread size per SAE J476.

This elbow is part of the 2503-FG series and offers a maximum dynamic pressure rating of 5,500 PSI. Its centerline length measures 1.040 inches, and its overall length is 1.200 inches.

SKU: 2503-08-12-FG

Supplier Part Number (MPN): 2503-08-12-FG

Alternate Part Numbers: 2503-08-12, A2023-12-8S

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.118 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.06 in
l Dimensions
1.2 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2503-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
3/4-16 x 3/4-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Troy W on Jun 29, 2025, 5:02 PM
Can this be used with any kind of hydraulic fluid, or are there restrictions?
Answer by: Customer Support on Jun 30, 2025, 8:54 PM
Rated to a maximum dynamic pressure of 5,500 PSI, this fitting should perform well in a wide range of hydraulic applications. Always verify fluid compatibility with forged steel.
