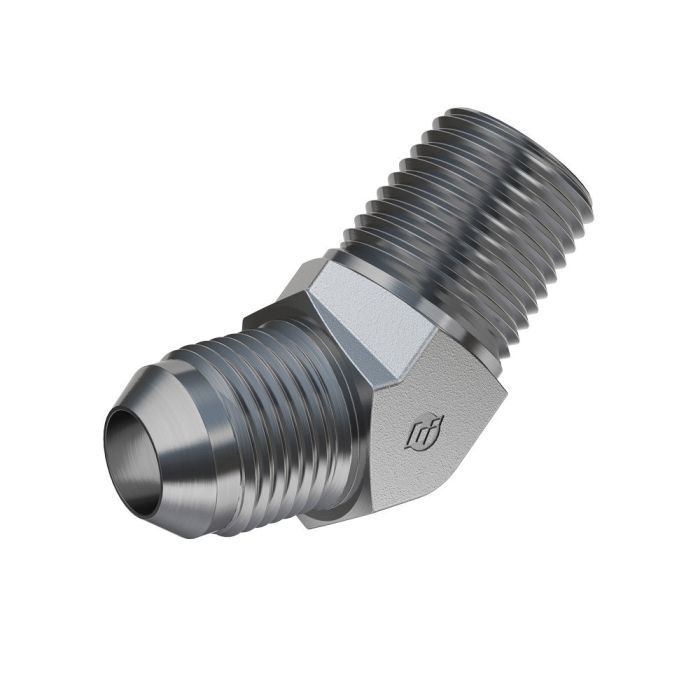

main product photo

10MJ-06MP 45 DEG ELBOW

Ask A Question

Description & Features

This high-quality 10MJ-06MP 45 Deg Elbow by Brennan Industries Inc. is designed for precise angle adjustments in various industrial applications. Its robust construction ensures reliable and long-lasting performance, making it a dependable choice for demanding environments.

The 45-degree angle provides optimal flow direction, enhancing the efficiency of fluid movement. This product does not feature adjustable ends and requires no calibration, simplifying installation and maintenance processes.

Engineered without the need for thread sealants, it minimizes potential leakage points. The absence of electrical components, such as diodes and switch connectors, underscores its focus on mechanical functionality without unnecessary complexities.

Supplier Part Number: 2503-10-06-FG

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Dimension Standards
SAE J514, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
2503-FG Series
Thread Size
7/8-14 x 3/8-18

Product Questions & Answers (2)

Question by: Diane G on Nov 23, 2025, 1:01 PM
Hey, just makin' sure, will this elbow joint fit a standard 10MJ connection? Gotta make sure it's right before I order.
Answer by: Customer Support on Nov 25, 2025, 6:15 AM
Functionally, this 45-degree elbow is designed to connect to 10MJ and 06MP fittings, providing a precise angle for fluid transfer in your system.
Question by: Chad M on Dec 7, 2025, 10:23 AM
trying to clean up a tight hose run, is this the kind of elbow that kicks the line over at 45 degrees?
Answer by: Customer Support on Dec 8, 2025, 8:49 PM
For routing, it gives you a fixed 45 degree change in direction so you can turn a fluid line without making a hard 90.
