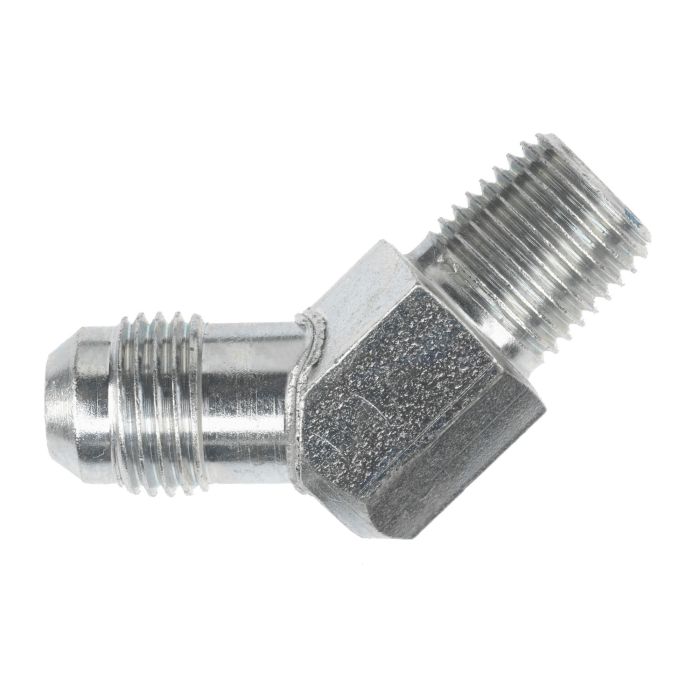

16MJ-16MP 45 ELB BRASS

Description & Features

The 16MJ-16MP 45 ELB BRASS by Brennan Industries Inc is a crucial component designed for industrial applications requiring a reliable elbow connector. Crafted from forged brass this fitting ensures robust performance in various conditions.

The component features a male JIC SAE 37 degree flare on one side and a male NPTF connection on the other conforming to SAE J514 and SAE J476 specifications respectively. The thread sizes are 1-5/16-12 and 1-11-1/2 suitable for aggressive environments.

With a centerline length of 1.470 mm and an overall length of 1.480 mm this elbow brass fitting delivers precise alignment. The product occupies a cubic inch space of 8.267 (L x W x H) making it a compact yet efficient solution for your robust system needs.

Supplier Part Number: 2503-16-16-B

Engineered to deliver consistency and dependability this elbow fitting is essential for advanced fluid systems. Ensure optimal performance with the 16MJ-16MP 45 ELB BRASS.

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2503-16-16-B	Product Weight 0.60 lbs

Product Questions & Answers (1)

Question by: Dean E on Dec 4, 2025, 8:31 AM

got a hose end that’s JIC 37° flare, and the port on my block is NPTF. is this elbow the right kinda adapter?

Answer by: Customer Support on Dec 5, 2025, 1:15 PM

For tying those two thread styles together, it fits the bill. One side is a male JIC SAE 37 degree flare built to SAE J514 with a 1-5/16-12 thread, and the other side is a male NPTF built to SAE J476 with a 1-11-1/2 thread, in a 45 degree elbow.
