#16 MJIC X #16 MP 45*

Ask A Question

Description & Features

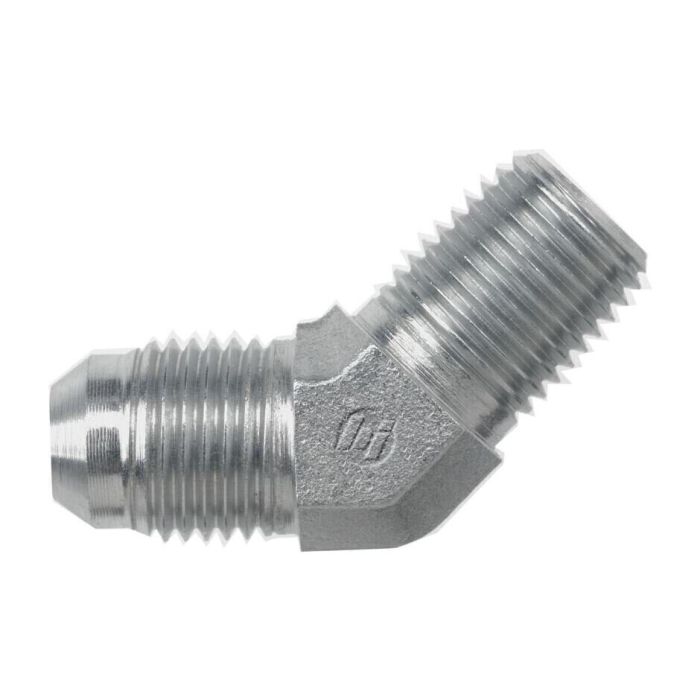

The Brennan Industries Inc 2503-16-16-FG offers a 16MJ-16MP 45 elbow forged fitting ideal for high-pressure hydraulic applications. Fabricated from premium forged steel this fitting ensures reliable performance under dynamic pressures up to 3 000 PSI.

The male JIC SAE 37 degree flare threads (1-5/16-12) comply with SAE J514 specifications while the male NPTF threads (1-11-1/2) meet SAE J476 standards. The fitting's dimensions include a centerline length of 1.470 mm and an overall length of 1.480 mm providing an optimal fit within space-constrained environments. The fitting's cubic inch space measures 8.267 contributing to its compact design.

Supplier Part Number: 2503-16-16-FG

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
8.267 cu-in
Dimension Standards
SAE J514, SAE J476
Dimensions
1.48 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.312 in
l Dimensions
1.48 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
2503-FG Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.844 in
Thread B2 Drill Dimensions
0.938 in
Thread Size
1-5/16-12 x 1-11-1/2 x 1-5/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Pete B on Mar 28, 2026, 9:56 PM
got a tight spot on a hydraulic line, is this the 45 degree elbow with one JIC flare and one pipe thread?
Answer by: Customer Support on Mar 30, 2026, 8:10 AM
Built as a 45 degree forged elbow, it has a male JIC SAE 37 degree flare on one end and a male NPTF pipe thread on the other. The JIC side is 1-5/16-12 (SAE J514) and the NPTF side is 1-11-1/2 (SAE J476).
Question by: Dale S on Jan 19, 2026, 2:04 PM
Does this fitting top out at 3,000 PSI, or is that just the dynamic rating? Trying to figure out if it'll hold up on a loader that sees some pretty hard pressure spikes.
Answer by: Customer Support on Jan 21, 2026, 12:04 PM
3,000 PSI is the maximum dynamic pressure rating for this fitting, meaning that's what it's rated to handle under active, fluctuating system conditions. Pressure spikes in loader applications fall under dynamic loading, so that 3,000 PSI figure is the one that applies to your situation. As long as your system stays within that ceiling, the fitting is built for it. Forged steel construction gives it solid durability under that kind of repeated stress.
Question by: Rick W on Mar 1, 2026, 10:10 AM
What's the pressure rating on this elbow? Just wanna make sure it'll hold up in my hydraulic system.
Answer by: Customer Support on Mar 2, 2026, 7:32 PM
It's rated for dynamic pressures up to 3,000 PSI, so it should be good for high-pressure hydraulic applications.
