04MJ-04MJ 45

Description & Features

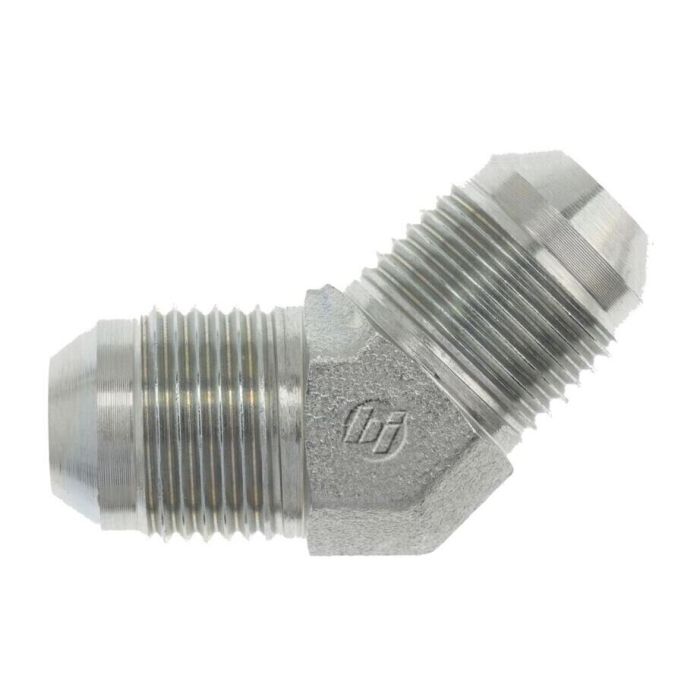

Ideal for high-pressure hydraulic applications, this 04MJ-04MJ 45-degree elbow fitting is crafted from durable forged steel, ensuring reliable performance and longevity. Featuring a maximum dynamic pressure rating of 7,500 PSI, it meets the demanding requirements of industrial settings. The fitting is designed with male JIC SAE 37-degree flare threads on both ends, adhering to SAE J514 specifications, and offers a seamless connection for hydraulic lines.

This elbow fitting boasts a compact design with an overall length of 0.720 mm, making it suitable for installations where space is limited. Its precise threading, 7/16-20 on both ends, ensures a secure and leak-proof fit, enhancing the efficiency and safety of hydraulic systems. Trusted by professionals, this fitting is part of the Brennan Industries’ 2504-FG series, known for its robust construction and compatibility with various hydraulic components.

SKU: 2504-04-04-FG

Supplier Part Number (MPN): 2504-04-04-FG

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Cubic Inch Space L x W x H Dimensions 0.592 cu-in	Dimension Standards SAE J514	Dimensions 0.72 in L	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 7/16 in	l Dimensions 0.72 in	Material Steel	Material Construction AISI C1045 Steel	Series 2504-FG Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.172 in	Thread Size 7/16-20

Product Questions & Answers (1)

Question by: Patty W on Feb 5, 2026, 4:52 PM

Can you tell me the overall length of this elbow? Just trying to make sure it fits in the space I have.

Answer by: Customer Support on Feb 7, 2026, 9:45 AM

It has an overall length of 0.720 mm. Good for tight spots!
