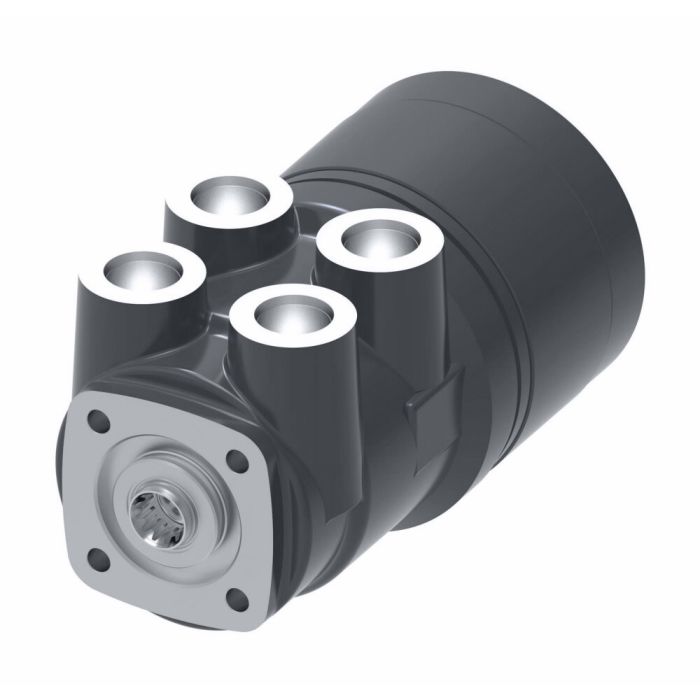

CHAR-LYNN STEERING MOTOR

Description & Features

The Eaton Char-Lynn steering motor is suitable for articulated and fixed-frame vehicle applications. This steering control unit is commonly used in loaders, scrapers, skidders, agricultural tractors, large front-end loaders, graders, mining trucks, articulated dump haulers, and transporters.

It features a flow rate of 95 liters per minute and a maximum pressure of 240 bar.

SKU: 251-1002

Supplier Part Number (MPN): 251-1002-004

Specifications

Alternate Part Numbers Alternate Part Number 251-1002-004, Alternate Part Number MINO-00162X82446	Application Loaders, Scrapers, Skidders, Ag Tractors, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, Transporters	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Flow Rate 95-189 L/min (25-50 gal/min)\|Maximum pressure 240 bar (3,500 psi)\|Articulated and fixed-frame vehicle applications	Flow Rate1 95 LPM	ICC Steering Control Unit (SCU)	Language English	Product Width 5.28	Special Features None	Sub Brand Char-Lynn	Supplier Part Number 251-1002-004	Product Weight 0.50 lbs

Product Questions & Answers (3)

Question by: Ralph P on Oct 2, 2025, 8:33 AM

got a loader that runs pretty decent flow, what kind of flow range will this Char-Lynn steering unit handle?

Answer by: Customer Support on Oct 4, 2025, 6:04 AM

On the flow side, it is rated for 95 to 189 L/min, which is 25 to 50 gal/min.

Question by: Rusty R on Mar 26, 2025, 12:23 PM

Will this steering motor fit on my older tractor? I'm looking to replace the existing unit.

Answer by: Customer Support on Mar 27, 2025, 5:19 PM

This Char-Lynn steering motor is commonly used in articulated and fixed-frame vehicle applications, including ag tractors. Confirming the specific model and dimensions against your current unit is always recommended to ensure proper fit.

Question by: Shane P on Jun 27, 2025, 11:37 AM

Running a big articulated dump hauler and need a steering control unit that can handle some serious flow. Does this one have the pressure and flow specs to hold up in that kind of application?

Answer by: Customer Support on Jun 29, 2025, 6:27 AM

For articulated dump haulers, the numbers on this unit are solid. Flow capacity runs from 95 to 189 liters per minute, which covers 25 to 50 gallons per minute, and maximum pressure is rated at 240 bar or 3,500 psi. Eaton Char-Lynn built this Series 25 unit specifically for heavy equipment like articulated dump haulers, along with mining trucks, large front end loaders, and graders. So yes, that kind of demanding application is squarely in its intended range.
