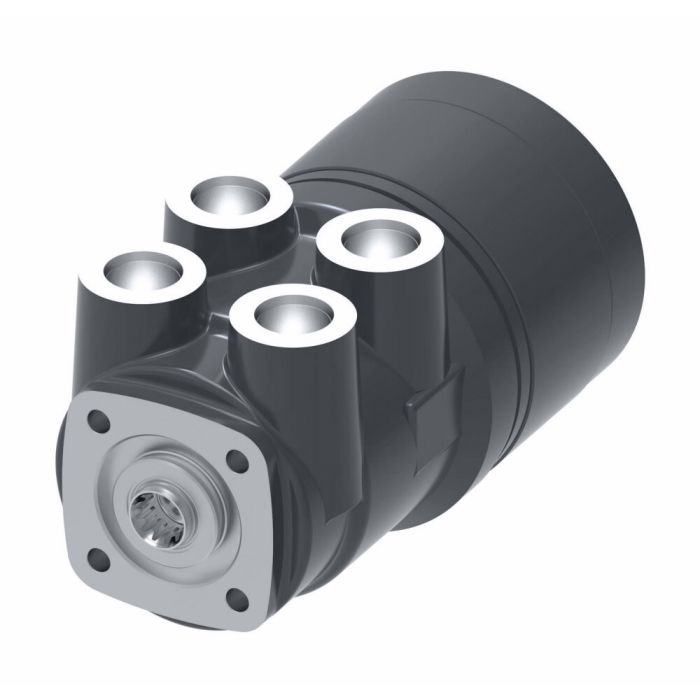

CHAR-LYNN STEERING UNIT

Description & Features

Designed for high-demand steering applications, the Eaton Char-Lynn Steering Control Unit handles flow rates from 95 to 189 L/min (25–50 gal/min) at pressures up to 240 bar (3,500 psi). It is well suited for both articulated and fixed-frame vehicles operating in heavy-duty environments.

This Char-Lynn Steering Unit is a Danfoss Power Solutions product built for use across a broad range of heavy equipment, including loaders, scrapers, skidders, agricultural tractors, large front-end loaders, graders, mining trucks, articulated dump haulers, and transporters. Its capacity for high flow rates makes it a practical fit for large vehicle platforms where reliable steering response under load is a priority.

SKU: 253-1005

Supplier Part Number (MPN): 253-1005-004

Specifications

Application Loaders, Scrapers, Skidders, Ag Tractors, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, Transporters	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Flow Rate 95-189 L/min (25-50 gal/min)\|Maximum pressure 240 bar (3,500 psi)\|Articulated and fixed-frame vehicle applications	Flow Rate1 95 LPM	ICC Steering Control Unit (SCU)	Language English	Product Width 5.28	Special Features None	Sub Brand Char-Lynn	Supplier Part Number 253-1005-004	Product Weight 0.50 lbs

Product Questions & Answers (3)

Question by: Melvin J on Jun 24, 2025, 12:41 PM

What kind of machines would this steering unit typically be found on?

Answer by: Customer Support on Jun 26, 2025, 6:47 AM

Primarily, this Char-Lynn unit is used on loaders, scrapers, skidders, ag tractors, large front end loaders, graders, mining trucks, articulated dump haulers, and transporters.

Question by: Earl B on Sep 18, 2025, 9:18 PM

Does this steering unit work on articulated machines, or is it only for fixed-frame equipment?

Answer by: Customer Support on Sep 20, 2025, 6:20 AM

Both articulated and fixed-frame vehicle applications are covered by this unit. It's built for heavy-duty work across a wide range of equipment including loaders, graders, skidders, ag tractors, mining trucks, and articulated dump haulers, so it handles the demands of either frame type without issue.

Question by: Neil H on May 16, 2025, 1:30 PM

got a big articulated dump hauler, is this steering unit meant for stuff like that or more for tractors

Answer by: Customer Support on May 18, 2025, 6:25 AM

Built for articulated and fixed-frame vehicle steering, it fits the kind of equipment listed like articulated dump haulers, mining trucks, graders, transporters, and ag tractors.
