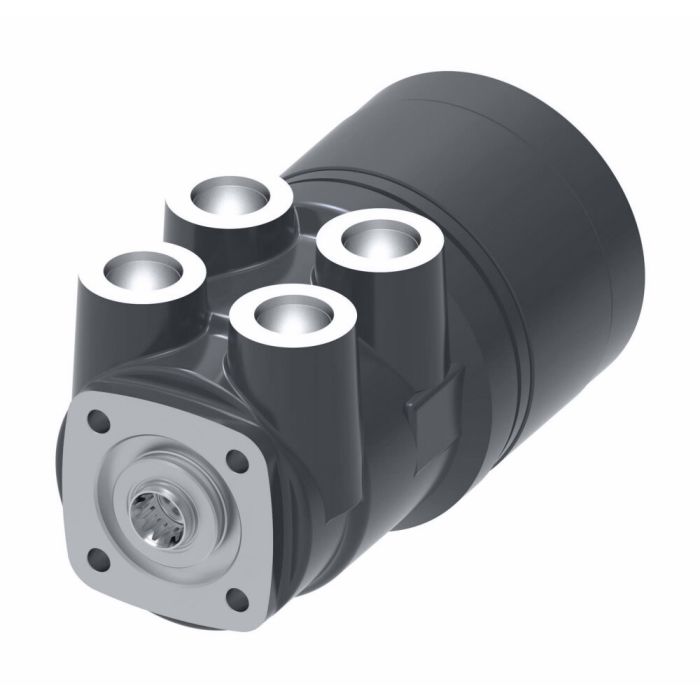

CHAR-LYNN ABW76A690FA21007HEAGA3A0AA10D

Description & Features

Designed for use in heavy-duty vehicles such as loaders, scrapers, skidders, ag tractors, and more, the Danfoss / Eaton Series 25 Steering Control Units excel in articulated and fixed-frame applications. With a substantial flow rate of 95-189 L/min (25-50 gal/min) and a maximum pressure of 240 bar (3,500 psi), these units provide reliable and precise steering performance under demanding conditions.

The CHAR-LYNN ABW76A690FA21007HEAGA3A0AA10D is a robust steering control unit that belongs to the renowned Char-Lynn sub-brand, ensuring top-tier quality and durability. The unit's design is optimized for various industrial vehicles, including large front-end loaders, graders, mining trucks, articulated dump haulers, and transporters, making it a versatile choice for diverse applications.

SKU: 253-1042-004

Supplier Part Number (MPN): 253-1042-004

Specifications

Application Loaders, Scrapers, Skidders, Ag Tractors, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, Transporters	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Flow Rate 95-189 L/min (25-50 gal/min)\|Maximum pressure 240 bar (3,500 psi)\|Articulated and fixed-frame vehicle applications	Flow Rate1 95 LPM	ICC Steering Control Unit (SCU)	Language English	Net Pack Quantity Units EA	Product Width 5.28	Special Features None	Sub Brand Char-Lynn	Supplier Part Number 253-1042-004	Product Weight 45.00 lbs

Product Questions & Answers (2)

Question by: Wayne G on Jun 18, 2025, 6:30 PM

what all kind of machines is this steering unit meant to go on? got a big articulated dump hauler and trying to figure out if this'd work

Answer by: Customer Support on Jun 20, 2025, 10:22 AM

Articulated dump haulers are right in the wheelhouse for this unit. The Series 25 covers a pretty wide range of heavy equipment including loaders, scrapers, skidders, ag tractors, graders, mining trucks, and transporters on top of that. Both articulated and fixed-frame vehicles are supported, so your hauler fits the application profile.

Question by: Ross M on Apr 26, 2025, 8:58 AM

Will this steering unit work on my older ag tractor, assuming the flow rates and pressure match up okay?

Answer by: Customer Support on Apr 28, 2025, 6:31 AM

Designed for use in heavy-duty vehicles like ag tractors, this steering control unit is a good fit as long as your system operates within its flow rate of 95-189 L/min and a maximum pressure of 240 bar.
