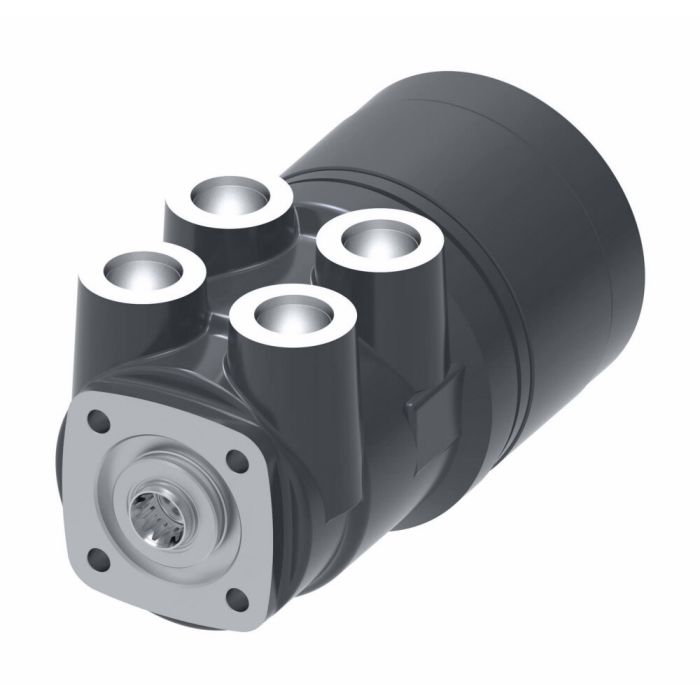

CHAR-LYNN ORB 25

Description & Features

The Eaton Char-Lynn Steering Control Unit is a highly reliable component designed for demanding industrial applications. Suitable for loaders, scrapers, skidders, and more, this unit is engineered to manage flow rates between 95 to 189 L/min (25 to 50 gal/min), ensuring precise control under heavy-duty conditions. It operates efficiently at a maximum pressure of 240 bar (3,500 psi), making it ideal for both articulated and fixed-frame vehicles in industries like agriculture, mining, and construction.

Part of the renowned Danfoss Power Solutions line, the CHAR-LYNN ORB 25 offers durability and performance that meet the rigorous standards of modern machinery. Its compatibility with large front-end loaders, graders, mining trucks, and dump haulers underscores its versatility and robust design. Trust the Eaton Char-Lynn brand for steering solutions that deliver consistent performance in challenging environments.

SKU: 253-3007-004

Supplier Part Number (MPN): 253-3007-004

Specifications

Alternate Part Numbers Alternate Part Number MINO-00162X82487	Application Loaders, Scrapers, Skidders, Ag Tractors, Large Front End Loaders, Graders, Mining Trucks, Articulated Dump Haulers, Transporters	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Flow Rate 95-189 L/min (25-50 gal/min)\|Maximum pressure 240 bar (3,500 psi)\|Articulated and fixed-frame vehicle applications	Flow Rate1 151 LPM	ICC Steering Control Unit (SCU)	Language English	Product Width 5.28	Special Features None	Sub Brand Char-Lynn	Supplier Part Number 253-3007-004	Product Weight 45.00 lbs

Product Questions & Answers (3)

Question by: Rex G on May 2, 2025, 7:46 PM

Will this steering control unit work on my older ag tractor? It's a Char-Lynn, but I'm not sure of the series.

Answer by: Customer Support on May 4, 2025, 10:10 AM

This Char-Lynn ORB 25 unit is often found on agricultural tractors, particularly larger models. However, to ensure proper fit, you'll want to check the flow rate and pressure requirements of your specific tractor. This unit handles a flow rate of 95-189 L/min and a maximum pressure of 240 bar (3,500 psi).

Question by: Debbie H on Jun 14, 2025, 12:11 PM

Running a big articulated dump hauler and need to know if this steering unit can keep up with the hydraulic demand on a machine that size. What kind of flow rates are we talking about?

Answer by: Customer Support on Jun 15, 2025, 6:22 PM

Flow capacity on this unit runs from 25 to 50 gallons per minute, with a rated flow of 151 LPM. For articulated dump haulers, that range is right in the ballpark for what those machines typically demand from a steering control unit. The 3,500 psi maximum pressure rating also gives you enough headroom for the loads those vehicles put through the steering circuit.

Question by: Billy W on Jul 31, 2025, 8:25 PM

got a skidder that needs a steering unit, is this ORB 25 meant for that kind of machine?

Answer by: Customer Support on Aug 2, 2025, 11:58 AM

Common applications for the ORB 25 steering control unit include skidders, along with loaders, scrapers, ag tractors, graders, and other heavy equipment like mining trucks and articulated dump haulers.
