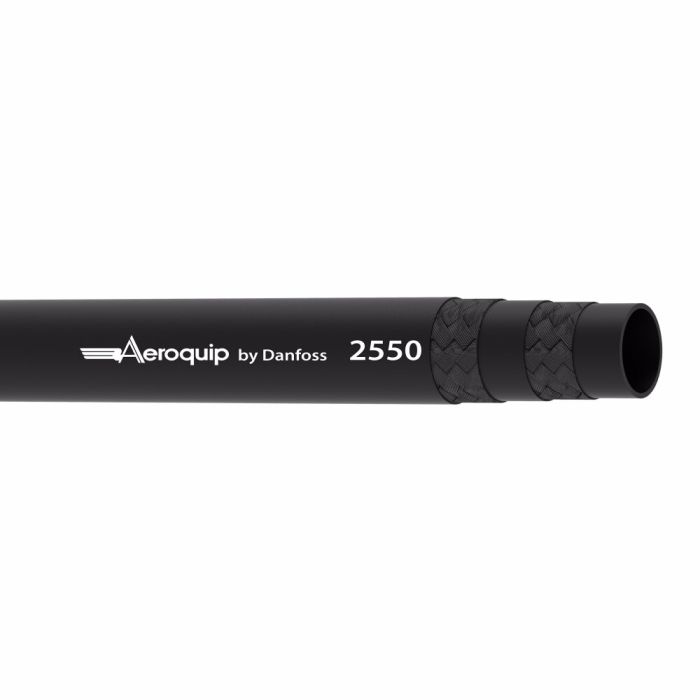

Aeroquip Hose And Coil - Code

Description & Features

Designed for demanding air brake applications, the Aeroquip Hose And Coil - Code is a Dash -6 airbrake hose built to SAE J1402 and DOT FMVSS 106 standards. It is well-suited for tractor-to-trailer lines, axle chamber lines, and tractor service lines where reliable air delivery under variable conditions is critical.

Construction combines a synthetic rubber tube with a two-ply polyester braid reinforcement and a chloroprene rubber cover, giving the hose durability across a wide operating temperature range down to -40°F. The conductive design helps dissipate static charge, while the lightweight build supports flexibility in routing. High-quality proprietary blended nylon materials contribute to performance under harsh working conditions. The lay line is applied via ink jet for clean, legible identification along the hose body.

SKU: 2550-6

Supplier Part Number (MPN): 2550-6

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F72435	Application Tractor to trailer lines, axle chamber lines and tractor service lines.	Certifications SAE J1402	Color Black	Compliances DOT FMVSS 106	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.75	Minimum Working Temperature -40	Product Width 0.78	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number 2550-6	Tube Material Synthetic Rubber	Product Weight 0.52 lbs

Product Questions & Answers (1)

Question by: Ronnie O on Oct 13, 2025, 9:55 AM

Is this hose okay for hooking up the air brakes on my semi-trailer? I need something that can handle the constant flexing.

Answer by: Customer Support on Oct 14, 2025, 2:01 PM

Yes, this Aeroquip hose is designed specifically for air brake applications like tractor-to-trailer lines. The lightweight and flexible construction, along with its durability, should hold up well under those conditions.
